Acenx SOP04-US

Acenx SOP04-US

Device Type: plug
Electrical Standard: us
Board: esp8266

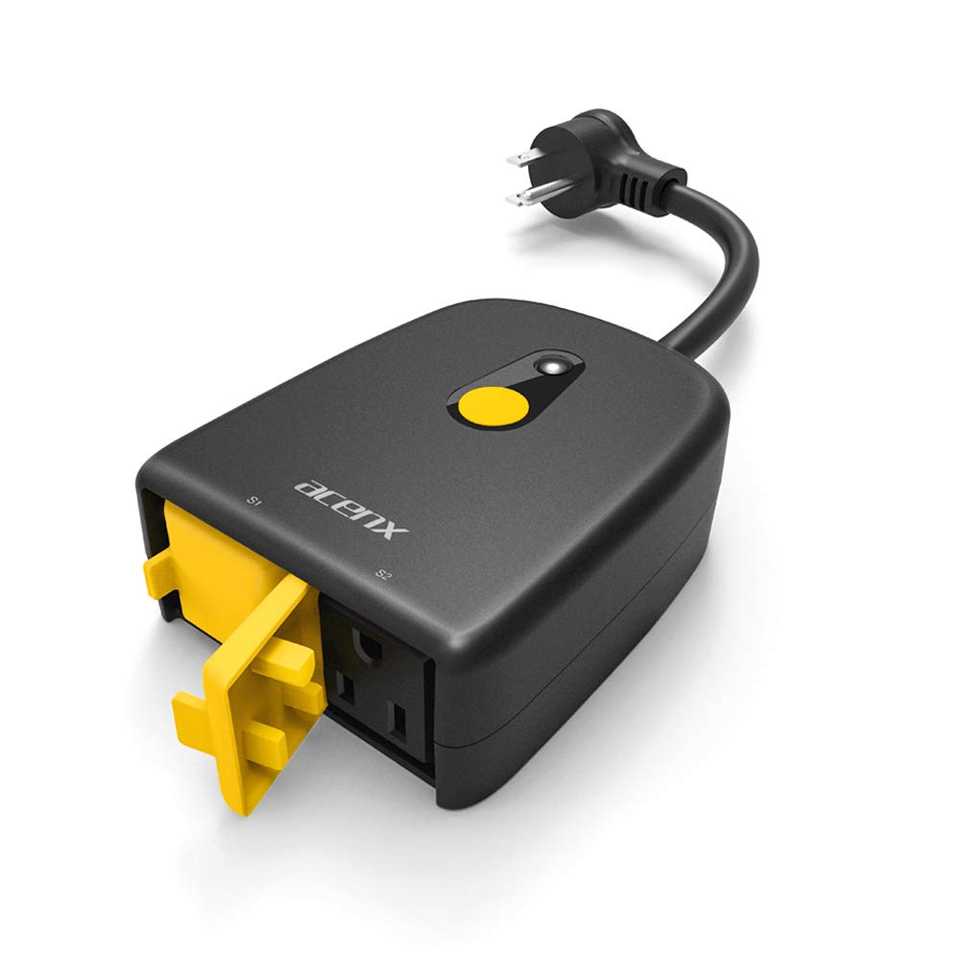

alt text

GPIO Pinout

PinFunction
GPIO04Led1i (Blue)
GPIO05Led2i (Green)
GPIO12Relay1
GPIO13Button1
GPIO14Relay2

The physcal button operates both relays. Toggle relay1 using a short press and relay2 using a long press. Timing can be adjusted in configuration. The blue LED is for status and green will be on if either or both relays are on. The green LED will be off if both relays are off.

Basic Configuration

substitutions:
  device_name: acenx-sop04-us
  friendly_name: Acenx SOP04-US


esphome:
  name: "${device_name}"


esp8266:
  board: esp01_1m


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:


# Enable logging
logger:


# Enable Home Assistant API
api:


ota:
  password: !secret ota


binary_sensor:
  - platform: gpio
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: yes
    name: "${friendly_name} Button"
    on_click:
      - min_length: 50ms
        max_length: 350ms
        then:
          - switch.toggle: "relay1"
      - min_length: 500ms
        max_length: 1000ms
        then:
          - switch.toggle: "relay2"
  - platform: status
    name: "${friendly_name} Status"


switch:
  - platform: gpio
    name: "${friendly_name} Relay1"
    id: "relay1"
    pin: GPIO12
    inverted: no
    on_turn_on:
      then:
        - output.turn_on: led
    on_turn_off:
      then:
        - if:
            condition:
              - switch.is_off: relay2
            then:
              - output.turn_off: led
  - platform: gpio
    name: "${friendly_name} Relay2"
    id: "relay2"
    pin: GPIO14
    inverted: no
    on_turn_on:
      then:
        - output.turn_on: led
    on_turn_off:
      then:
        - if:
            condition:
              - switch.is_off: relay2
            then:
              - output.turn_off: led


status_led:
  pin:
    number: GPIO04
    inverted: true


output:
  - platform: gpio
    pin: GPIO05
    inverted: true
    id: led


sensor:
  - platform: wifi_signal
    name: "${friendly_name} WiFi signal"
    update_interval: 60s
  - platform: uptime
    name: "${friendly_name} Uptime"
    update_interval: 60s


text_sensor:
  - platform: version
    name: "${friendly_name} ESPHome Version"
