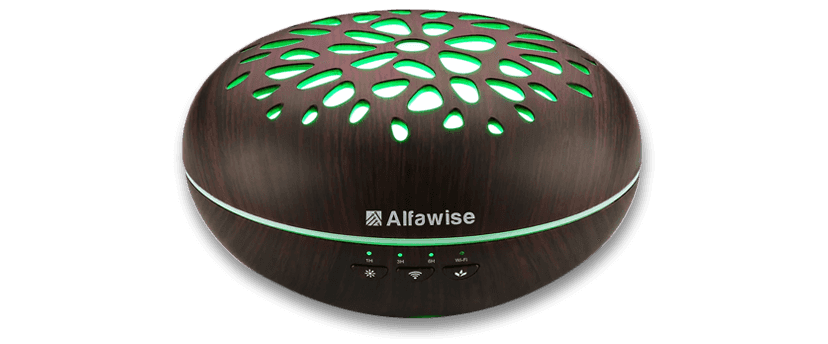

Alfawise SJ-7 (Essential oil diffuser)

alt text

Updated for ESPHOME 2025.2.0 and later (2025-03-04)

https://esphome.io/guides/contributing#a-note-about-custom-components

Working

  • All essential oil diffuser related controls (ON/OFF; LOW/HIGH; Timer 1H/3H/6H).

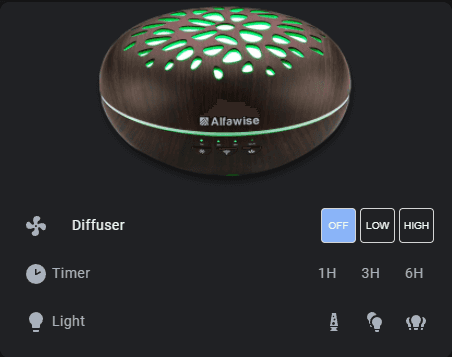

  • Lava lamp lighting activation, fast/slow color change, I can add stop color change button if needed.
  • OTA upgrade.

Not Working

  • Use the light like a classic bulb (just on of off and choose a color).

Installation

Flashing

For flashing, you have to solder wires like this:

alt text Use U0TXD, U0RXD, GND (and VCC if you dont want to use the diffuser power supply).

Make sure to ground GPIO0 during boot.

You can use the ESPHome add-on from Home Assistant Community Add-ons

Basic Configuration

external_components:
  - source: github://antibill51/Alfawise_SJ-7_HASSIO/esphome


substitutions:
  name: alfawise
  friendly_name: "alfawise SJ-7"


# ! (START) VALUES TO CHANGE !
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password
  ap_password: "xxx"
  ota_password: xxx
# ! (END) VALUES TO CHANGE !


  #commands
  receive_timer1h: "55:AA:03:1F:09:01:2B"
  receive_timer3h: "55:AA:03:1F:09:02:2C"
  receive_timer6h: "55:AA:03:1F:09:03:2D"
  receive_high: "55:AA:03:1F:07:02:2A"
  receive_low: "55:AA:03:1F:07:01:29"
  receive_lava_lamp: "55:AA:03:1F:02:01:24"
  receive_rainbow_slow: "55:AA:03:1F:0C:01:2E"
  receive_rainbow_fast: "55:AA:03:1F:0C:03:30"
  receive_lava_lamp_on_diff: "55:AA:02:04:01:06"
  receive_diff_on_switch: "55:AA:02:03:01:05"
  receive_light_off_switch: "55:AA:02:04:00:05"
  receive_light_diff_off_esp: "55:AA:02:1F:0E:2E"
  receive_diff_off_esp: "55:AA:03:1F:07:00:28"
  receive_light_off_esp: "55:AA:03:1F:02:00:23"


esphome:
  name: ${name}


  on_boot:
    priority: -100.0
    then:
      - switch.turn_off: power_high
      - lambda: id(${name}_fan).speed = 0;
      - switch.turn_off: lava_lamp
      - switch.turn_on: wifi_blinkin_slow
      - delay: 5s
      - switch.turn_off: wifi_blinkin_slow


esp8266:
  board: esp01_1m
debug:
logger:
  baud_rate: 0
  level: debug
  esp8266_store_log_strings_in_flash: False


ota:
  - platform: esphome
    password: ${ota_password}


uart:
  id: uart_bus
  tx_pin: GPIO1
  rx_pin: GPIO3
  baud_rate: 9600
  stop_bits: 1
  # debug:
  #   direction: BOTH
  #   dummy_receiver: false
  #   after:
  #     delimiter: "\n"
  #     bytes: 256
  #   sequence:
  #     - lambda: UARTDebug::log_hex(direction, bytes, ':');


wifi:
  ssid: ${wifi_ssid}
  password: ${wifi_password}


  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "${friendly_name} Fallback Hotspot"
    password: ${ap_password}
api:
web_server:
  port: 80


  # Sync time with Home Assistant.
time:
  - platform: homeassistant
    id: homeassistant_time


  - platform: sntp
    on_time:
      # Every 1 seconds
      - seconds: /1
        then:
          - if:
              condition:
                and:
                  - switch.is_off: power_low
                  - switch.is_off: power_high
                  - fan.is_on: ${name}_fan
              then:
                - switch.turn_on: update_fan_speed
              else:
                - if:
                    condition:
                      and:
                        - switch.is_on: power_low
                        - switch.is_off: power_high
                        - or:
                            - lambda: |-
                                if (id(${name}_fan).speed == 2) {
                                  return true;
                                }else{
                                  return false;
                                }
                            - lambda: |-
                                if (id(${name}_fan).speed == 0) {
                                  return true;
                                }else {
                                  return false;
                                }
                    then:
                      - switch.turn_on: update_fan_speed
                    else:
                      - if:
                          condition:
                            and:
                              - switch.is_off: power_low
                              - switch.is_on: power_high
                              - or:
                                  - lambda: |-
                                      if (id(${name}_fan).speed ==1) {
                                        return true;
                                      }else {
                                        return false;
                                      }
                                  - lambda: |-
                                      if (id(${name}_fan).speed == 0) {
                                        return true;
                                      }else {
                                        return false;
                                      }
                          then:
                            - switch.turn_on: update_fan_speed


# Text sensors with UART received information.
text_sensor:
  - platform: uart_readline_custom
    id: uart_readline
    name: ${name} serial
    uart_id: uart_bus
  - platform: wifi_info
    ip_address:
      name: ${name} ip
    ssid:
      name: ${name} ssid
    bssid:
      name: ${name} bssid
  - platform: version
    name: ${name} ESPHome Version


sensor:
  # Uptime sensor
  - platform: uptime
    name: ${name} uptime
    unit_of_measurement: d
    update_interval: 300s
    accuracy_decimals: 1
    filters:
      - multiply: 0.000011574
  # WiFi Signal sensor
  - platform: wifi_signal
    name: ${name} signal
    update_interval: 60s
    accuracy_decimals: 0


output:
  - platform: fake_fan_output
    id: fanoutput


switch:
  - platform: template
    id: timer1h
    name: ${name} Timer 1H
    icon: mdi:timer-sand-empty
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer1h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer3h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer6h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x01, 0x00, 0x0c]
        - delay: 1h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
    turn_off_action:
      then:
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
  - platform: template
    id: timer3h
    name: ${name} Timer 3H
    icon: mdi:timer-sand-complete
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer3h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer1h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer6h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x02, 0x00, 0x0d]
        - delay: 3h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
    turn_off_action:
      then:
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
  - platform: template
    id: timer6h
    name: ${name} Timer 6H
    icon: mdi:timer-sand
    disabled_by_default: false
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_timer6h}") {
        return true;
      } else if(id(uart_readline).state == "${receive_timer1h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_timer3h}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      then:
        - if:
            condition:
              and:
                - fan.is_off: ${name}_fan
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - delay: 500ms
        - uart.write: [0x55, 0xAA, 0x03, 0x09, 0x03, 0x00, 0x0e]
        - delay: 6h
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
    turn_off_action:
      then:
        - uart.write: [0x55, 0xaa, 0x03, 0x0e, 0x00, 0x00, 0x10]
  - platform: template
    id: power_high
    icon: mdi:fan
    disabled_by_default: true
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_high}") {
        return true;
      } else if (id(uart_readline).state == "${receive_diff_on_switch}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xAA, 0x03, 0x07, 0x02, 0x00, 0x0B]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x00, 0x00, 0x09]
    on_turn_on:
      - switch.template.publish:
          id: power_low
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: power_low
          state: OFF


  - platform: template
    disabled_by_default: true
    id: power_low
    icon: mdi:fan
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_low}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_diff_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x01, 0x00, 0x0A]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x07, 0x00, 0x00, 0x09]
    on_turn_on:
      - switch.template.publish:
          id: power_high
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: power_high
          state: OFF


  - platform: template
    disabled_by_default: true
    id: wifi_blinkin_slow
    icon: mdi:led-on
    optimistic: true
    assumed_state: true
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x03, 0x03, 0x00, 0x08]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x03, 0x01, 0x00, 0x06]
  - platform: template
    name: ${name} Lava Lamp
    id: lava_lamp
    icon: mdi:lava-lamp
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_lava_lamp}") {
        return true;
      } else if (id(uart_readline).state == "${receive_lava_lamp_on_diff}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x01, 0x01, 0x06]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
    on_turn_on:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF


  - platform: template
    name: ${name} Rainbow Slow
    id: rainbow_slow
    icon: mdi:lightbulb-multiple
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_rainbow_slow}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x0c, 0x01, 0x00, 0x0f]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
    on_turn_on:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: lava_lamp
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: rainbow_fast
          state: OFF
      - switch.template.publish:
          id: lava_lamp
          state: OFF


  - platform: template
    name: ${name} Rainbow Fast
    id: rainbow_fast
    icon: mdi:lightbulb-group
    optimistic: false
    assumed_state: false
    lambda: |-
      if (id(uart_readline).state == "${receive_rainbow_fast}") {
        return true;
      } else if(id(uart_readline).state == "${receive_light_off_switch}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_diff_off_esp}") {
        return false;
      } else if(id(uart_readline).state == "${receive_light_off_esp}") {
        return false;
      } else {
        return {};
      }
    turn_on_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x0c, 0x03, 0x00, 0x11]
    turn_off_action:
      - uart.write: [0x55, 0xaa, 0x03, 0x02, 0x00, 0x01, 0x05]
    on_turn_on:
      - switch.template.publish:
          id: lava_lamp
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF
    on_turn_off:
      - switch.template.publish:
          id: lava_lamp
          state: OFF
      - switch.template.publish:
          id: rainbow_slow
          state: OFF


  - platform: template
    disabled_by_default: true
    id: update_fan_speed
    optimistic: True
    turn_on_action:
      then:
        - delay: 500ms
        - if:
            condition:
              and:
                - switch.is_off: power_low
                - switch.is_off: power_high
            then:
              - fan.turn_off: ${name}_fan
            else:
              - if:
                  condition:
                    and:
                      - switch.is_on: power_low
                      - switch.is_off: power_high
                  then:
                    - fan.turn_on:
                        id: ${name}_fan
                        speed: 1
                  else:
                    - if:
                        condition:
                          and:
                            - switch.is_off: power_low
                            - switch.is_on: power_high
                        then:
                          - fan.turn_on:
                              id: ${name}_fan
                              speed: 2
        - switch.turn_off: update_fan_speed


fan:
  - platform: speed
    output: fanoutput
    id: ${name}_fan
    name: "${friendly_name} Fan"


    speed_count: 2
    on_turn_on:
      then:
        - if:
            condition:
              lambda: return (id(${name}_fan).speed == 0);
            then:
              - fan.turn_on:
                  id: ${name}_fan
                  speed: 1
              - switch.turn_on: power_low
            else:
              - if:
                  condition:
                    lambda: return (id(${name}_fan).speed == 1);
                  then:
                    - switch.turn_on: power_low
                  else:
                    - if:
                        condition:
                          lambda: return (id(${name}_fan).speed == 2);
                        then:
                          - switch.turn_on: power_high
        - if:
            condition:
              and:
                - switch.is_off: timer1h
                - switch.is_off: timer3h
                - switch.is_off: timer6h
            then:
              - delay: 500ms
              - switch.turn_on: timer1h
    on_turn_off:
      then:
        - lambda: id(${name}_fan).speed = 0;
        - switch.turn_off: power_low
        - switch.turn_off: power_high
    on_speed_set:
      then:
        - if:
            condition:
              and:
                - lambda: return (id(${name}_fan).speed == 0);
                - or:
                    - switch.is_on: power_low
                    - switch.is_on: power_high
            then:
              - switch.turn_off: power_high
              - switch.turn_off: power_low
            else:
              - if:
                  condition:
                    - lambda: return (id(${name}_fan).speed == 1);
                    - switch.is_off: power_low
                  then:
                    - switch.turn_on: power_low
                  else:
                    - if:
                        condition:
                          - lambda: return (id(${name}_fan).speed == 2);
                          - switch.is_off: power_high
                        then:
                          - switch.turn_on: power_high
              - if:
                  condition:
                    and:
                      - switch.is_off: timer1h
                      - switch.is_off: timer3h
                      - switch.is_off: timer6h
                  then:
                    - delay: 500ms
                    - switch.turn_on: timer1h
captive_portal:

Home Assistant integration

Lovelace card

For lovelace card, you need this HACS Addons :

File diffuser.png need to be in this path : config/www/

Card config example

type: custom:vertical-stack-in-card
cards:
  - type: picture-entity
    entity: switch.schedule_lave_linge
    image: /local/ressources/diffuseur/diffuseur.png
    show_state: false
    show_name: false
    tap_action:
      action: none
    hold_action:
      action: none
    style: |
      ha-card {
        border: none;
      }
  - type: entities
    entities:
      - entity: fan.alfawise_sj_7_fan
        type: custom:fan-percent-button-row
        name: Diffuser
        state_color: true
        isTwoSpeedFan: true
        customSetpoints: true
        reverseButtons: true
        sendStateWithSpeed: false
        lowPercentage: 50
        hiPercentage: 100
        width: 35px
        height: 35px
      - type: custom:paper-buttons-row
        buttons:
          - layout: icon|name
            icon: mdi:clock-time-two
            name: Timer
            style:
              button:
                width: 150%
                justify-content: left
            tap_action:
              action: none
          - entity: switch.alfawise_timer_1h
            layout: name
            name: 1H
            style:
              button:
                width: 17%
          - entity: switch.alfawise_timer_3h
            layout: name
            name: 3H
            style:
              button:
                width: 17%
          - entity: switch.alfawise_timer_6h
            layout: name
            name: 6H
            style:
              button:
                width: 17%
      - type: custom:paper-buttons-row
        buttons:
          - layout: icon|name
            icon: mdi:lightbulb
            name: Light
            style:
              button:
                width: 150%
                justify-content: left
            tap_action:
              action: none
          - entity: switch.alfawise_lava_lamp
            layout: icon
            style:
              button:
                width: 15%
          - entity: switch.alfawise_rainbow_slow
            layout: icon
            style:
              button:
                width: 15%
          - entity: switch.alfawise_rainbow_fast
            layout: icon
            style:
              button:
                width: 15%
    style: |
      ha-card {
        border: none;
        margin-top: -2%;
      }

Lovelace card screenshot

alt text

Original firmware

I have put a backup of the original firmware, and I also modified the AMA HOME APK but only for reconnect the original firmware to Wifi, ssg360 seems down.

https://github.com/antibill51/Alfawise_SJ-7_HASSIO/tree/master/Original%20firmware

Edit this page on GitHub

On this page
