Aoycocr X13 Outdoor Plug (2AKBP-X13)
Aoycocr X13 Outdoor Plug (2AKBP-X13)
Device Type: plugElectrical Standard: usBoard: esp8266Difficulty: Soldering required, 4/5
All information provided is from Iprak documentation.
The device has 2 indicator LEDs under the button and 2 indiviually controllable outlets. FCC filing Tasmato wiki mentioned that it might not be able to use Tuya-Convert.

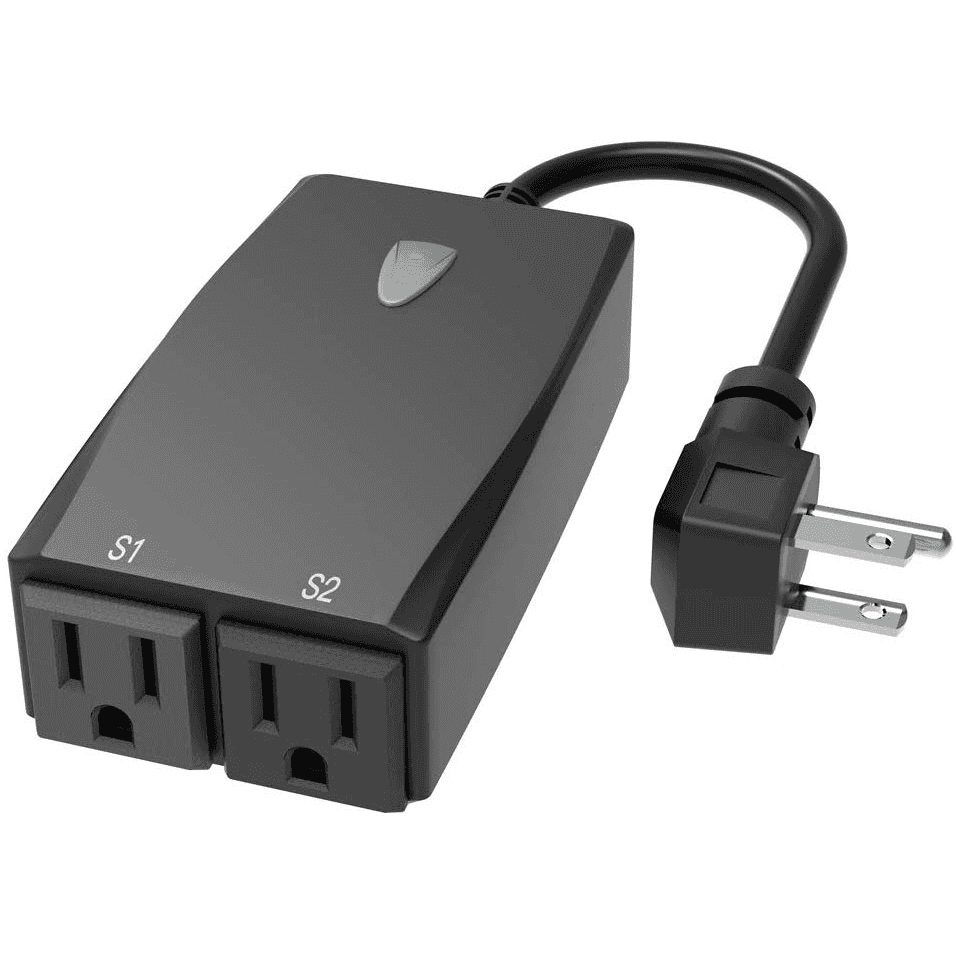

Product Image



GPIO Pinout
The GPIO pinout was learned from Iprak documentation. The ESP module is ESP8266-S3 and the FCC filing provided the pins
- EN
 - TOUT
 - GPIO12
 - GPIO14
 - GPIO13
 - GPIO15
 - GPIO0
 - GPIO2
 - GPIO4
 - GPIO 5
 - RX
 - TX
 - VCC
 - GND

The pins are on alternate sides:
1  3  5  7  9  11  132  4  6  8  10 12  14The GPIOs being used are:
- LED#1:GPIO0, inverted
 - LED#2:GPIO2, inverted
 - Button:GPIO13
 - Relay1:GPIO15
 - Relay2:GPIO12

Basic Configuration
The below YAML template is from Iprak documentation.
substitutions:  devicename: aoycocr_x13  proper_devicename: Aoycocr X13
esphome:  name: $devicename
esp8266:  board: esp01_1m  arduino_version: espressif8266@2.6.2
wifi:  ssid: !secret wifi_ssid  password: !secret wifi_password  ap:
captive_portal:logger:api:ota:
# https://tasmota.github.io/docs/Components/# https://templates.blakadder.com/aoycocr_X13.html
binary_sensor:  - platform: gpio    pin:      number: GPIO13    id: button    on_press:     - switch.toggle: relay1     - switch.toggle: relay2
  - platform: status    name: $devicename
switch:  - platform: gpio    name: "$devicename 1"    pin: GPIO15    id: relay1    icon: "mdi:floor-lamp"    #Led2 represents switch 1    on_turn_on:      - output.turn_on: led2    on_turn_off:      - output.turn_off: led2
  - platform: gpio    name: "$devicename 2"    pin: GPIO12    id: relay2    icon: "mdi:floor-lamp"
output:  - platform: gpio    pin: GPIO0    id: led2    inverted: yes
status_led:  pin:    number: GPIO2    inverted: yes
