substitutions:
  device_name: "smart-oil-gauge"
  friendly_name: "Smart Oil Gauge"
  Samples_Before_Sleep: '3'
  Auto_Sleep_On_dc: '2.5%'
  Auto_Sleep_Off_dc: '87%'
  ultrasonic_interval: '250ms'
  tank_size: "330" # 275, 330, 500, 550, or 1000
  tank_orientation: '1'  # 1 = Vertical,  2 = Horizontal

esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}
  on_boot:
    - priority: 800
      then:
        - switch.turn_off: ultrasonic_en
        - switch.turn_off: deep_sleep_trig
        - switch.turn_off: VarCheck
        - switch.turn_off: ultrasonic_pwr
        - switch.turn_off: Auto_Sleep_Disable
    - priority: -100
      then:
        - script.execute: set_tank_dimensions
        - output.turn_on: LED_pwm
        - output.set_level:
            id: LED_pwm
            level: ${Auto_Sleep_On_dc}
        - switch.turn_on: TempSens_EN

  on_shutdown:
    then:
      - switch.turn_off: ultrasonic_en
      - output.turn_off: LED_pwm
      - if:
          condition:
            - switch.is_on: deep_sleep_trig
          then:
            - switch.turn_on: sleep_1hr

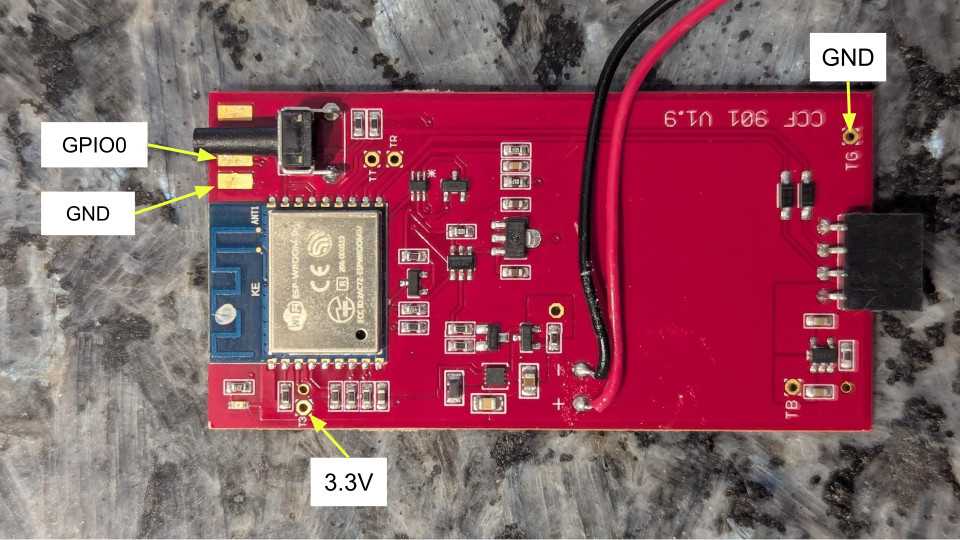

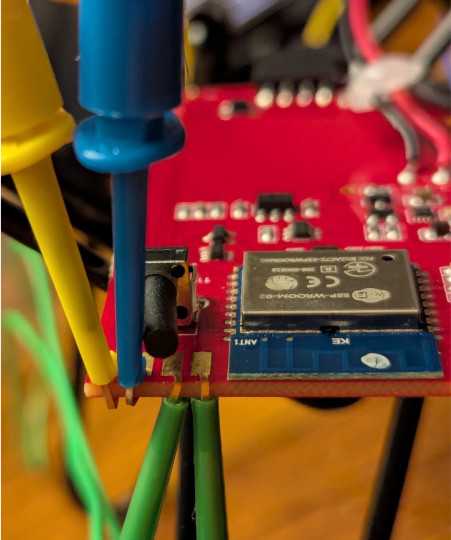

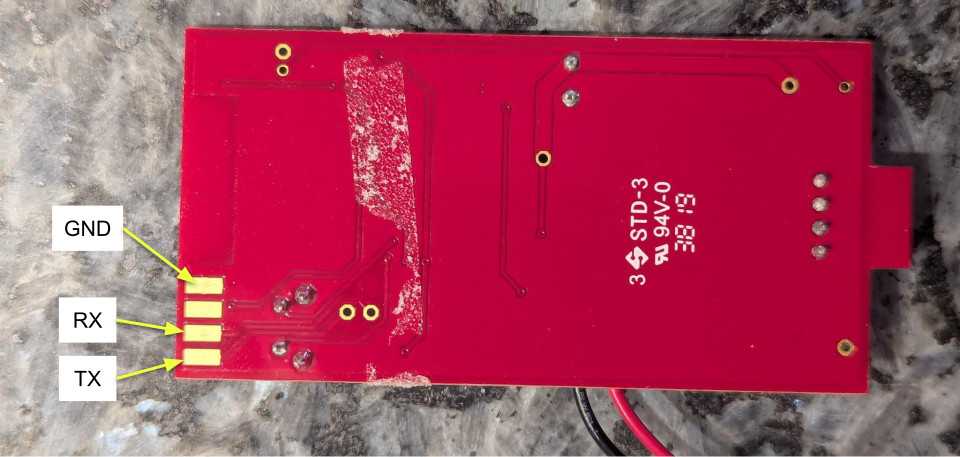

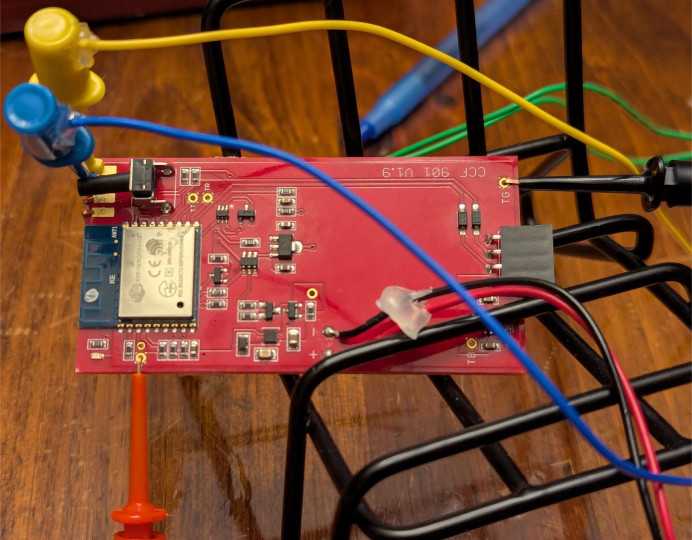

esp8266:
  board: esp_wroom_02

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key

ota:
  - platform: esphome
    password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: ${device_name}
    password: !secret fallback_password

captive_portal:

deep_sleep:
  id: my_deep_sleep
  sleep_duration: 30s

globals:
  - id: Tank_Width
    type: float
    initial_value: '0'

  - id: Tank_Radius
    type: float
    initial_value: '0'

  - id: Tank_Height
    type: float
    initial_value: '0'

  - id: Tank_Length
    type: float
    initial_value: '0'

  - id: Oil_Height
    type: double
    initial_value: '0'

  - id: Rectangle_Height
    type: double
    initial_value: '0'

  - id: Arc_Height
    type: double
    initial_value: '0'

  - id: Rectangle_Area
    type: double
    initial_value: '0'

  - id: Arc_Area
    type: double
    initial_value: '0'

  - id: Total_Area
    type: double
    initial_value: '0'

  - id: Oil_In_Tank
    type: double
    initial_value: '0'

  - id: Max_Fill
    type: double
    initial_value: '0'

  - id: Tank_Orientation
    type: float
    initial_value: ${tank_orientation}

  - id: Tank_Size
    type: float
    initial_value: ${tank_size}

  - id: Measure_Count
    type: int
    initial_value: '0'

  - id: Samples_Before_Sleep
    type: int
    initial_value: ${Samples_Before_Sleep}

switch:
  - platform: restart
    name: Reboot

  - platform: template
    name: "Ultrasonic EN"
    id: ultrasonic_en
    entity_category: "config"
    disabled_by_default: true
    optimistic: true
    on_turn_on:
      then:
        - script.execute: ultrasonic_loop
    on_turn_off:
      then:
        - switch.turn_off: ultrasonic_pwr

  - platform: template
    name: "Deep Sleep Trigger"
    id: deep_sleep_trig
    optimistic: True
    on_turn_on:
      then:
        - script.stop: ultrasonic_loop
        - switch.turn_off: ultrasonic_en
        - deep_sleep.enter:
            id: my_deep_sleep

  - platform: template
    name: "Auto Sleep Disable"
    id: Auto_Sleep_Disable
    optimistic: True
    on_turn_on:
      - output.set_level:
          id: LED_pwm
          level: ${Auto_Sleep_Off_dc}
    on_turn_off:
      - output.set_level:
          id: LED_pwm
          level: ${Auto_Sleep_On_dc}

  - platform: template
    name: "Variable Check"
    entity_category: "config"
    id: VarCheck
    optimistic: True

  - platform: gpio
    pin: GPIO15
    id: TempSens_EN
    name: "TempSens EN"
    entity_category: "config"
    disabled_by_default: true

  - platform: gpio
    pin: GPIO14
    id: ultrasonic_pwr
    name: "Ultrasonic Pwr"
    entity_category: "config"
    disabled_by_default: false
    on_turn_on:
      then:
        - delay: 5s
        - switch.turn_on: ultrasonic_en

  - platform: gpio
    pin: GPIO13 # Done Signal to TPL5111
    id: sleep_1hr # Use Deep_Sleep_EN
    entity_category: "config"
    disabled_by_default: true
    name: "Sleep 1hr"

output:
  - platform: slow_pwm
    id: LED_pwm
    period: 1s
    pin: GPIO2
    inverted: True

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO12
      inverted: true
    id: ctrl_btn
    name: "Control Button"
    on_multi_click:
      - timing:
          - ON for at most 1s
          - OFF for at most 1s
          - ON for at most 1s
          - OFF for at least 0.2s
        then:
          - switch.toggle: Auto_Sleep_Disable
      - timing:
          - ON for at most 1s
          - OFF for at least 0.5s
        then:
          - switch.turn_on: deep_sleep_trig

sensor:
  - platform: template
    name: 'Oil In Tank'
    id: Oil_In_Tank_sens
    device_class: volume_storage
    state_class: measurement
    unit_of_measurement: 'gal'
    accuracy_decimals: 4

  - platform: template
    name: 'Max Fill'
    id: Max_Fill_sens
    device_class: volume
    state_class: total
    unit_of_measurement: 'gal'
    accuracy_decimals: 4

  - platform: adc
    pin: A0
    name: "ADC Input"
    id: ADC_Input
    accuracy_decimals: 5
    update_interval: 5s
    entity_category: "diagnostic"
    filters:
      - lambda: |-

          // Battery Voltage Divider R Values
          int R1 = 10;  // MOhm
          int R2 = 1;   // MOhm

          float offset = -2.2; // Temperature correction offset (degC)

          if (id(TempSens_EN).state){
            return (((x*1000)-500)/10) + offset; // Temperature Sensor (degC)
          } else {
            return (x * (R1+R2))/R2; // Battery Voltage
          }

    on_value:
      then:
        - if:
            condition:
              - switch.is_on: TempSens_EN
            then:
              - sensor.template.publish:
                  id: TempC
                  state: !lambda 'return id(ADC_Input).state;'
              - component.update: VP_Oil
              - switch.turn_off: TempSens_EN
              - delay: 1s
              - switch.turn_on: ultrasonic_pwr
            else:
              - sensor.template.publish:
                  id: Batt_V
                  state: !lambda 'return id(ADC_Input).state;'

  - platform: template
    name: 'Temperature'
    id: TempC
    device_class: temperature
    state_class: measurement
    accuracy_decimals: 3
    unit_of_measurement: '°C'

  - platform: template
    name: 'Battery Voltage'
    id: Batt_V
    device_class: voltage
    state_class: measurement
    accuracy_decimals: 4
    unit_of_measurement: 'V'

  - platform: template
    name: 'Vapor Pressure Oil'
    id: VP_Oil
    update_interval: never
    device_class: pressure
    unit_of_measurement: kPa
    entity_category: "diagnostic"
    accuracy_decimals: 8
    lambda: |-
      return id(TempC).state;
    filters:
      - calibrate_linear:
          method: exact
          datapoints:
            # https://www.eng-tips.com/threads/typical-diesel-info.109718/post-424028
            # Map 0.0 (from sensor) to 1.0 (true value)
            # degC to Oil Vapor Pressure kPa
            - 4.444444444 -> 0.021373756
            - 10.0 -> 0.03102642
            - 15.55555556 -> 0.051021224
            - 21.11111111 -> 0.06205284
            - 26.66666667 -> 0.08273712
            - 32.22222222 -> 0.11031616
            - 37.77777778 -> 0.15168472

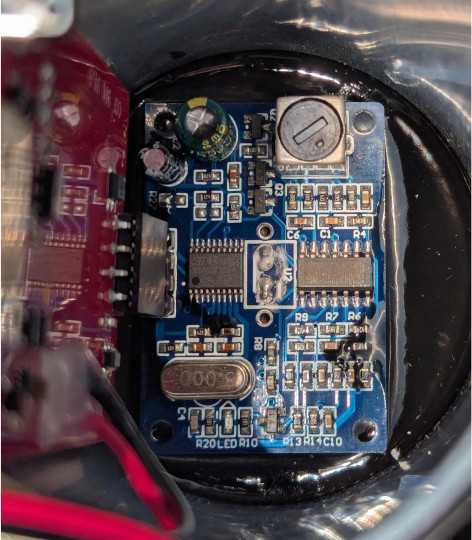

  - platform: ultrasonic
    trigger_pin:
        number: GPIO4
        inverted: true

    echo_pin: GPIO5
    name: "Distance to Oil"
    id: Oil_Distance
    accuracy_decimals: 25
    update_interval: never # 4s
    filters:

      - median:
          window_size: 5
          send_every: 5
          send_first_at: 5

      - sliding_window_moving_average:
          window_size: 16
          send_every: 16
          send_first_at: 16

      - lambda: |-

          // Calc Molecular Weight of Vapor above Oil

          double MW_Oil = 167.31102; // g_Oil/mol_Oil  (C12H23)
          double MW_Air = 28.9639475; // g_Air/mol_Air

          double P_Total = 101.325; // kPa (Could use a measured pressure here)
          double P_Oil = id(VP_Oil).state; // Partial Pressure of Oil kPa
          double P_Air = P_Total - P_Oil; // Partial Pressure Of Air kPa

          double nOil_per_nTotal = P_Oil / P_Total; // mol_Oil/mol_Total
          double nAir_per_nTotal = P_Air / P_Total; // mol_Air/mol_Total

          double g_Oil_per_nTotal = nOil_per_nTotal * MW_Oil; // g_Oil/mol_Total
          double g_Air_per_nTotal = nAir_per_nTotal * MW_Air; // g_Air/mol_Total

          double MW_Total = g_Oil_per_nTotal + g_Air_per_nTotal; // g_Total/mol_Total
          MW_Total = MW_Total / 1000; // kg_Totla/mol_Total


          // Back Calc Time of Flight
          double ESP_speed_sound_m_per_s = 343.0;
          double total_dist = x * 2.0;
          double time_s = total_dist / ESP_speed_sound_m_per_s;


          // Calc Speed of Sound in Vapor above Oil
          // https://en.wikipedia.org/wiki/Speed_of_sound
          double gamma = 1.4; // Oil is small enough fraction that large change in gamma is not expected
          double R = 8.31446261815324;
          double Sc = sqrt(gamma * R * 273.15 / MW_Total);
          double speed_sound_m_per_s = Sc * sqrt(1+(id(TempC).state/273.15)); // ideal diatomic gas

          // Calc Distance to Oil Surface
          total_dist = time_s * speed_sound_m_per_s;
          return total_dist/2.0;

    on_value:
      then:
        - script.execute: Calc_Oil_Height

script:

  - id: Calc_Oil_Height
    then:
      - if:
          condition:
            - lambda: |-
                return id(Tank_Orientation) == 1; // Vertical
          then:
            - lambda: |-
                id(Oil_Height) = id(Tank_Height) - (id(Oil_Distance).state * 1000 / 25.4);
            - script.execute: Check_Oil_Height_V
      - if:
          condition:
            - lambda: |-
                return id(Tank_Orientation) == 2; // Horizontal
          then:
            - lambda: |-
                id(Oil_Height) = id(Tank_Width) - (id(Oil_Distance).state * 1000 / 25.4);
            - script.execute: Check_Oil_Height_H

  - id: Check_Oil_Height_H
    then:
      - lambda: |-
          id(Rectangle_Height) = id(Oil_Height);
          id(Arc_Height) = id(Oil_Height);
      - script.execute: Calc_Area

  - id: Check_Oil_Height_V
    then:
      - if:
          condition:
            lambda: |-
              return id(Oil_Height) >= (id(Tank_Height)-id(Tank_Radius));
          then:
            - lambda: |-
                id(Rectangle_Height) = id(Tank_Height) - id(Tank_Width);
                id(Arc_Height) = id(Oil_Height) - id(Rectangle_Height);
            - script.execute: Calc_Area
      - if:
          condition:
            all:
              - lambda: |-
                  return id(Oil_Height) >= (id(Tank_Radius));
              - lambda: |-
                  return id(Oil_Height) < (id(Tank_Height)-id(Tank_Radius));
          then:
            - lambda: |-
                id(Rectangle_Height) = id(Oil_Height) - id(Tank_Radius);
                id(Arc_Height) = id(Tank_Radius);
            - script.execute: Calc_Area
      - if:
          condition:
            all:
              - lambda: |-
                  return id(Oil_Height) >= 0;
              - lambda: |-
                  return id(Oil_Height) < (id(Tank_Radius));
          then:
             - lambda: |-
                id(Rectangle_Height) = 0;
                id(Arc_Height) = id(Oil_Height);
             - script.execute: Calc_Area

  - id: Calc_Area
    then:
      - lambda: |-
          double d;
          double r;
          double arc;

          d = id(Arc_Height);
          r = id(Tank_Radius);
          arc = 2 * (acos((r-d)/r));
          id(Arc_Area) = ((r*r) * (arc - sin(arc))) / 2;
      - lambda: |-
          if (id(Tank_Orientation) == 1){ // Vertical
            id(Rectangle_Area) = id(Rectangle_Height) * id(Tank_Width);
          } else { // Horizontal
            id(Rectangle_Area) = id(Rectangle_Height) * (id(Tank_Height) - id(Tank_Width));
          }

      - lambda: |-
          id(Total_Area) = id(Rectangle_Area) + id(Arc_Area);
      - script.execute: Calc_Oil_Volume

  - id: Calc_Oil_Volume
    then:
      - globals.set:
          id: Oil_In_Tank
          value: !lambda |-
            return id(Total_Area) * id(Tank_Length) / 231;
      - sensor.template.publish:
          id: Oil_In_Tank_sens
          state: !lambda 'return id(Oil_In_Tank);'
      - sensor.template.publish:
          id: Max_Fill_sens
          state: !lambda 'return id(Max_Fill) - id(Oil_In_Tank);'
      - if:
          condition:
            - switch.is_on: Auto_Sleep_Disable
          then:
            - globals.set:
                id: Measure_Count
                value: '0'
          else:
            - globals.set:
                id: Measure_Count
                value: !lambda 'return id(Measure_Count) += 1;'
            - if:
                condition:
                  - lambda: 'return id(Measure_Count) >= id(Samples_Before_Sleep);'
                then:
                  - switch.turn_on: deep_sleep_trig
      - lambda: 'ESP_LOGD("MeasureCount", "%i", id(Measure_Count));'

      - if:
          condition:
            - switch.is_on: VarCheck
          then:
            - script.execute: Log_Values

  - id: Log_Values
    mode: queued
    then:
      - lambda: |-
          ESP_LOGD("VarCheck", "Tank_Orientation %.15g", id(Tank_Orientation));
          ESP_LOGD("VarCheck", "Tank_Size %.15g", id(Tank_Size));
          ESP_LOGD("VarCheck", "Oil_Distance %.15g", id(Oil_Distance).state);
          ESP_LOGD("VarCheck", "Tank_Width %.15g", id(Tank_Width));
          ESP_LOGD("VarCheck", "Tank_Height %.15g", id(Tank_Height));
          ESP_LOGD("VarCheck", "Tank_Length %.15g", id(Tank_Length));
          ESP_LOGD("VarCheck", "Tank_Radius %.15g", id(Tank_Radius));
          ESP_LOGD("VarCheck", "Oil_Height %.15g", id(Oil_Height));
          ESP_LOGD("VarCheck", "Arc_Height %.15g", id(Arc_Height));
          ESP_LOGD("VarCheck", "Rectangle_Height %.15g", id(Rectangle_Height));
          ESP_LOGD("VarCheck", "Arc_Area %.15g", id(Arc_Area));
          ESP_LOGD("VarCheck", "Rectangle_Area %.15g", id(Rectangle_Area));
          ESP_LOGD("VarCheck", "Total_Area%.15g", id(Total_Area));
          ESP_LOGD("VarCheck", "Oil_In_Tank%.15g", id(Oil_In_Tank));

  - id: ultrasonic_loop
    mode: restart
    then:
      - delay: ${ultrasonic_interval}
      - while:
          condition:
            switch.is_on: ultrasonic_en
          then:
            - component.update: Oil_Distance
            - delay: ${ultrasonic_interval}

 # Tank Dimensions:
 # https://www.fuelsnap.com/heating_oil_tank_charts.php

  - id: set_tank_dimensions
    then:
      - lambda: |-
          if (id(Tank_Size) == 275){
              id(Max_Fill) = 250;
              id(Tank_Width) = 27.8;
              id(Tank_Height) = 44;
              id(Tank_Length) = 60;
          }
          if (id(Tank_Size) == 330){
              id(Max_Fill) = 300;
              id(Tank_Width) = 27.8;
              id(Tank_Height) = 44;
              id(Tank_Length) = 72;
          }
          if (id(Tank_Size) == 500){
              id(Max_Fill) = 450;
              id(Tank_Width) = 48;
              id(Tank_Height) = 48;
              id(Tank_Length) = 63.8;
          }
          if (id(Tank_Size) == 550){
              id(Max_Fill) = 500;
              id(Tank_Width) = 48;
              id(Tank_Height) = 48;
              id(Tank_Length) = 70.25;
          }
          if (id(Tank_Size) == 1000){
              id(Max_Fill) = 900;
              id(Tank_Width) = 48;
              id(Tank_Height) = 48;
              id(Tank_Length) = 127.6;
          }

          id(Tank_Radius) = id(Tank_Width)/2;
