KinCony KC868-A32

Device Type: relay
Electrical Standard: global
Board: esp32

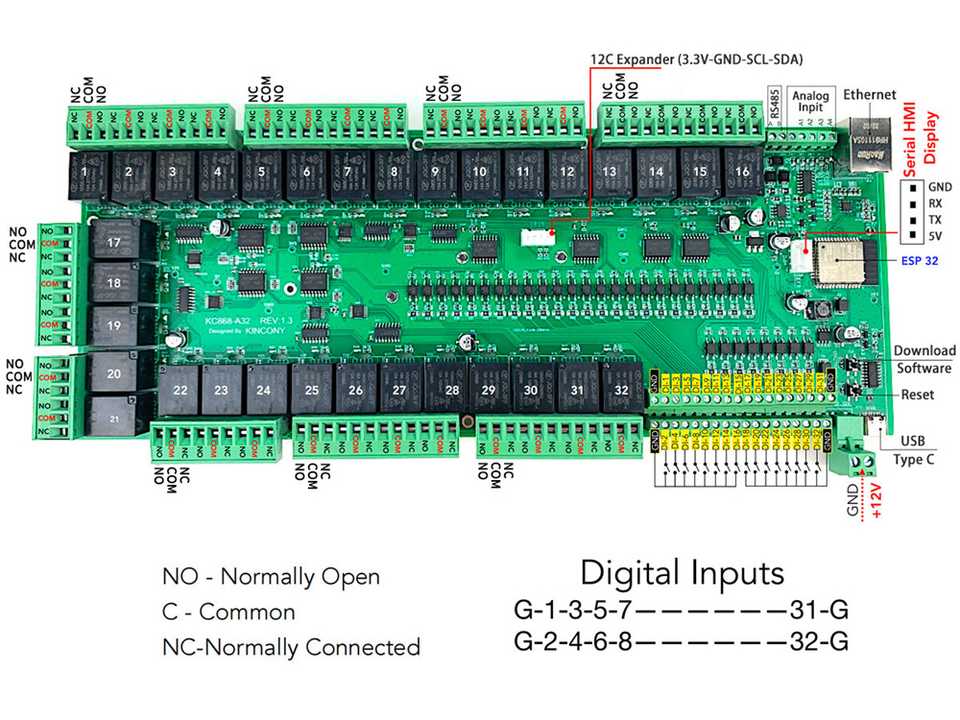

Product
GPIO Pinout

Pin	Function
GPIO39	ANALOG_A1
GPIO34	ANALOG_A2
GPIO36	ANALOG_A3
GPIO35	ANALOG_A4
GPIO15	IIC_Bus_1_SDA
GPIO13	IIC_Bus_1_SCL
GPIO4	IIC_Bus_2_SDA
GPIO5	IIC_Bus_2_SCL
GPIO32	1-Wire GPIO
GPIO33	1-Wire GPIO
GPIO14	1-Wire GPIO
GPIO16	RS485_RXD
GPIO14	RS485_TXD
GPIO33	Extend_Serial_RXD
GPIO32	Extend_Serial_TXD
Additional pinout/design details
Basic Configuration

# Basic Config
esphome:
  name: KC868-A32

esp32:
  board: esp32dev

# Enable logging
logger:

# Enable Home Assistant API
api:

 # Example configuration entry
i2c:
   - id: bus_a
     sda: 15
     scl: 13
     scan: true
   - id: bus_b
     sda: 4
     scl: 5
     scan: true

# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    i2c_id: bus_a
    address: 0x24

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    i2c_id: bus_a
    address: 0x25

  - id: 'pcf8574_hub_out_3'  # for output channel 17-24
    i2c_id: bus_a
    address: 0x21

  - id: 'pcf8574_hub_out_4'  # for output channel 25-32
    i2c_id: bus_a
    address: 0x22

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    i2c_id: bus_b
    address: 0x24

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    i2c_id: bus_b
    address: 0x25

  - id: 'pcf8574_hub_in_3'  # for input channel 17-24
    i2c_id: bus_b
    address: 0x21

  - id: 'pcf8574_hub_in_4'  # for input channel 25-32
    i2c_id: bus_b
    address: 0x22

# Individual outputs
switch:
  - platform: gpio
    name: "a32-light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light17"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light18"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light19"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light20"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light21"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light22"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light23"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light24"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light25"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light26"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light27"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light28"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light29"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light30"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light31"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32-light32"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 7
      mode: OUTPUT
      inverted: true

# Individual outputs
binary_sensor:
  - platform: gpio
    name: "a32-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input17"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input18"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input19"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input20"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input21"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input22"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input23"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input24"
    pin:
      pcf8574: pcf8574_hub_in_3
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input25"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input26"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input27"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input28"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input29"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input30"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input31"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a32-input32"
    pin:
      pcf8574: pcf8574_hub_in_4
      number: 7
      mode: INPUT
      inverted: true

# Example configuration entry
sensor:
  - platform: adc
    pin: 39
    name: "analog-1"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 34
    name: "analog-2"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 36
    name: "analog-3"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 35
    name: "analog-4"
    update_interval: 10s
    attenuation: 12db
