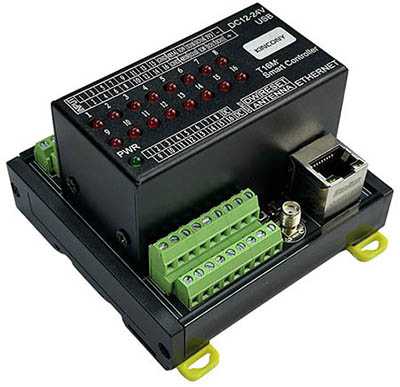

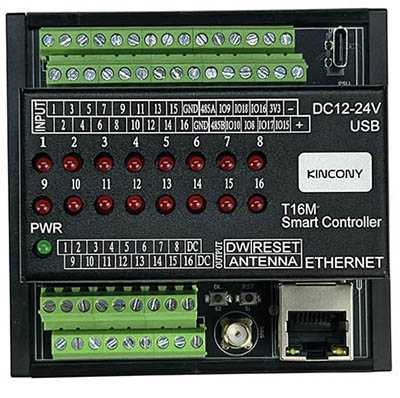

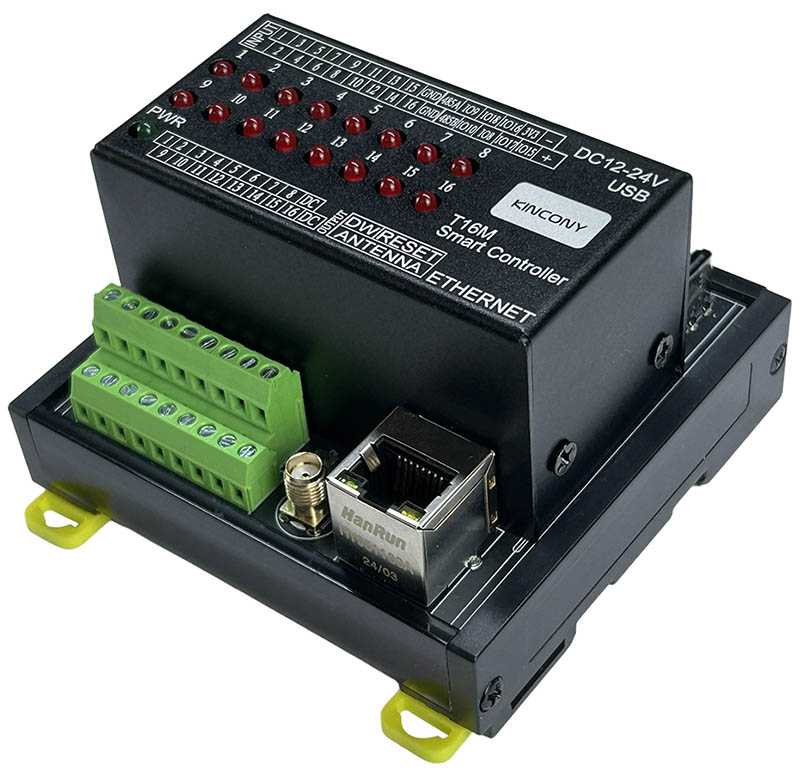

KinCony-T16M (ESP32-S3 16CH Mosfet board)

KinCony-T16M (ESP32-S3 16CH Mosfet board)

Device Type: relay
Electrical Standard: global
Board: esp32

Product Product Product

Resources

ESPHome Configuration

Here is an example YAML configuration for the KinCony-T16M board.

esphome:
  name: t16m
  friendly_name: t16m


esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino


# Enable logging
logger:


# Enable Home Assistant API
api:


ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO41
  interrupt_pin: GPIO2
  reset_pin: GPIO1


i2c:
   - id: bus_a
     sda: 11
     scl: 12
     scan: true
     frequency: 400kHz


pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-16
    i2c_id: bus_a
    address: 0x25
    pcf8575: true


  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: true


uart:
  - id: uart_1    #RS485
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 13
    rx_pin: 14


switch:
  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]


  - platform: gpio
    name: "t16m-output01"
    id: "t16m_output01"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output02"
    id: "t16m_output02"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output03"
    id: "t16m_output03"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output04"
    id: "t16m_output04"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output05"
    id: "t16m_output05"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output06"
    id: "t16m_output06"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output07"
    id: "t16m_output07"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output08"
    id: "t16m_output08"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output09"
    id: "t16m_output09"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 8
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output10"
    id: "t16m_output10"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 9
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output11"
    id: "t16m_output11"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 10
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output12"
    id: "t16m_output12"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 11
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output13"
    id: "t16m_output13"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 12
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output14"
    id: "t16m_output14"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 13
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output15"
    id: "t16m_output15"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 14
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "t16m-output16"
    id: "t16m_output16"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 15
      mode: OUTPUT
      inverted: true


binary_sensor:
  - platform: gpio
    name: "t16m-input01"
    id: "t16m_input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input02"
    id: "t16m_input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input03"
    id: "t16m_input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input04"
    id: "t16m_input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input05"
    id: "t16m_input05"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input06"
    id: "t16m_input06"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input07"
    id: "t16m_input07"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input08"
    id: "t16m_input08"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input09"
    id: "t16m_input09"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 8
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input10"
    id: "t16m_input10"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 9
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input11"
    id: "t16m_input11"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 10
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input12"
    id: "t16m_input12"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 11
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input13"
    id: "t16m_input13"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 12
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input14"
    id: "t16m_input14"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 13
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input15"
    id: "t16m_input15"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 14
      mode: INPUT
      inverted: true


  - platform: gpio
    name: "t16m-input16"
    id: "t16m_input16"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 15
      mode: INPUT
      inverted: true


##pull-up resistance on PCB
  - platform: gpio
    name: "t16m-W1-io8"
    pin:
      number: 8
      inverted: true


  - platform: gpio
    name: "t16m-W1-io9"
    pin:
      number: 9
      inverted: true


  - platform: gpio
    name: "t16m-W1-io10"
    pin:
      number: 10
      inverted: true


  - platform: gpio
    name: "t16m-W1-io15"
    pin:
      number: 15
      inverted: true


  - platform: gpio
    name: "t16m-W1-io16"
    pin:
      number: 16
      inverted: false


  - platform: gpio
    name: "t16m-W1-io17"
    pin:
      number: 17
      inverted:  false


  - platform: gpio
    name: "t16m-W1-io18"
    pin:
      number: 18
      inverted:  false


  - platform: gpio
    name: "t16m-io0"
    pin:
      number: 0
      inverted:  false


web_server:
  port: 80
