LinkNodeR4 - 4 Relay ESP8266

LinkNodeR4 - 4 Relay ESP8266

Device Type: relay
Electrical Standard: global
Board: esp8266

Product Images

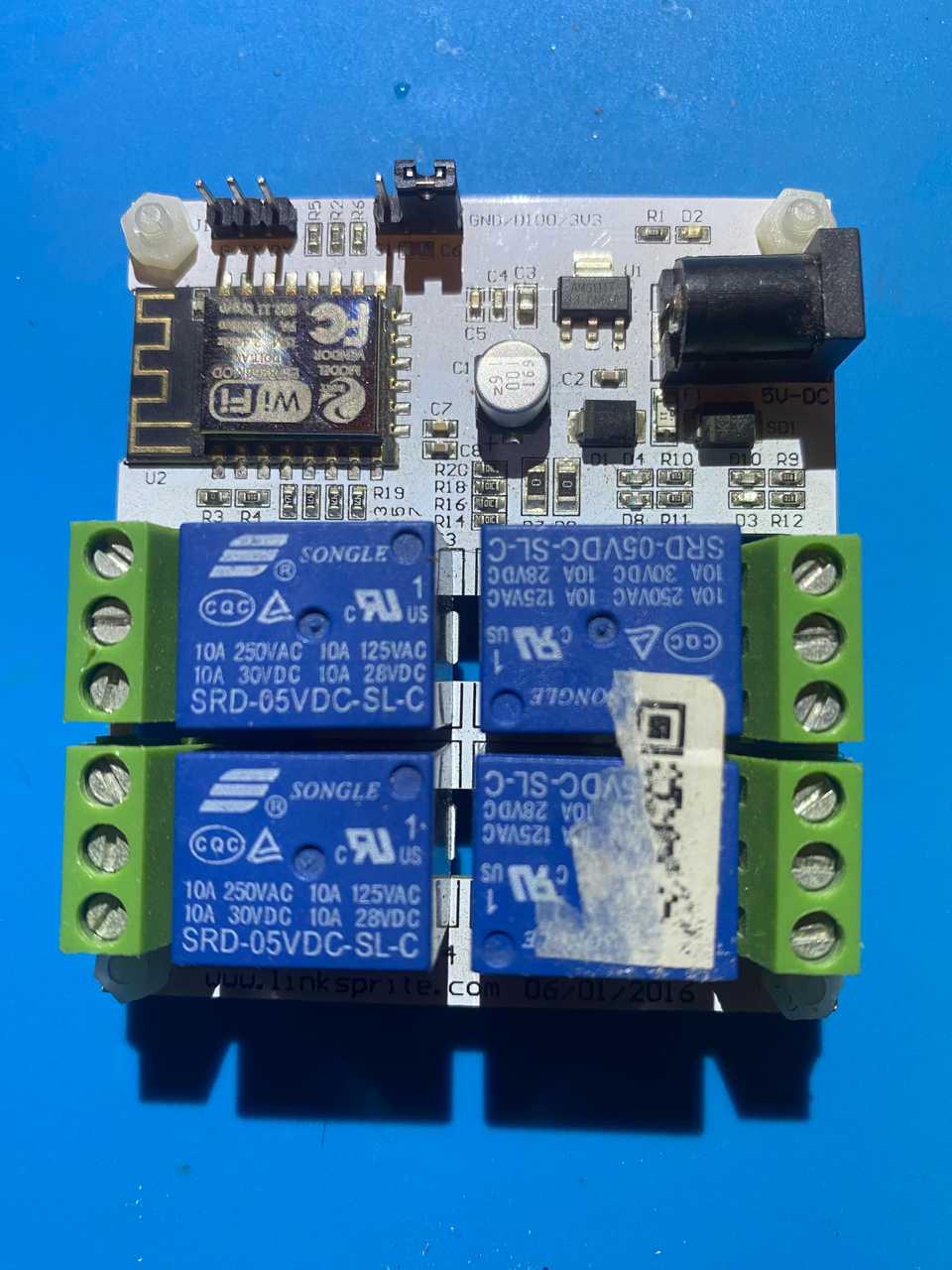

LinkNodeR4 Device

GPIO Pinout

PinFunction
GPIO2Status LED (active low)
GPIO12Relay 1 (Switch)
GPIO13Relay 2 (Switch)
GPIO14Relay 3 (Switch)
GPIO16Relay 4 (Switch)

Basic Configuration

substitutions:
  name: "esphome-linknoder4-01"
  friendly_name: "LinkNodeR4-01"


esphome:
  name: ${name}
  friendly_name: ${friendly_name}


esp8266:
  board: esp12e


wifi:


logger:


api:


ota:


status_led:
  pin:
    number: GPIO2
    inverted: True
switch:
  - platform: gpio
    pin: GPIO12
    id: relay1
    name: "${friendly_name} Relay 1"
  - platform: gpio
    pin: GPIO13
    id: relay2
    name: "${friendly_name} Relay 2"
  - platform: gpio
    pin: GPIO14
    id: relay3
    name: "${friendly_name} Relay 3"
  - platform: gpio
    pin: GPIO16
    id: relay4
    name: "${friendly_name} Relay 4"
