Minoston Outdoor Smart Plug MP22W Version 5.0

Minoston Outdoor Smart Plug MP22W Version 5.0

Device Type: plug
Electrical Standard: us
Board: bk72xx

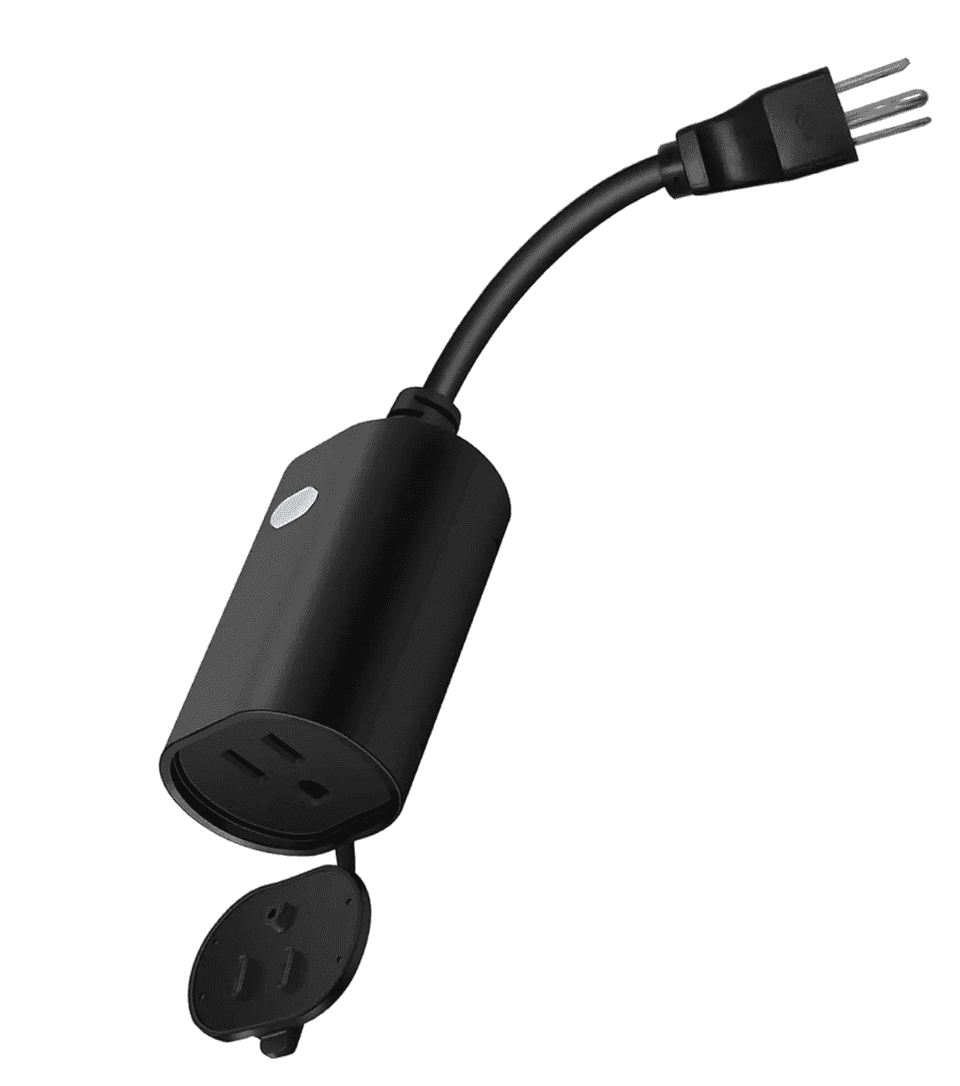

Minoston Outdoor Smart Plug

Notes

This device has at least three different versions, one with ESP8266, one with WB2s, and one with CB2S. This is specific to the CB2s version. If you have the WB2S chip (Version 2.0) pinout information can be found here.

Basic Configuration

substitutions:
  name: minoston_mp22w
  friendly_name: "MP22W"


esphome:
  name: ${name}
  name_add_mac_suffix: false
  friendly_name: ${friendly_name}


bk72xx:
  board: cb2s


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  domain: !secret domain
  power_save_mode: none
  ap:
    ssid: "ESPHome"
    password: !secret wifi_fallback_password


api:
  encryption:
    key: !secret api_key


web_server:
  port: 80


ota:


logger:


captive_portal:


binary_sensor:
  - platform: gpio
    pin:
      number: P8
      inverted: true
    id: button1
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_release:
      - switch.toggle: outlet


switch:
  - platform: gpio
    name: Outlet
    id: outlet
    pin: P24
    icon: mdi:power-socket-us
    on_turn_on:
      - switch.turn_off: led
    on_turn_off:
      - switch.turn_on: led


  - platform: gpio
    name: "led"
    internal: true
    id: led
    pin:
      number: P7
      inverted: true


text_sensor:
  - platform: wifi_info
    ip_address:
      name: ESP IP Address
    ssid:
      name: ESP Connected SSID
    mac_address:
      name: ESP Mac Wifi Address


sensor:
  - platform: uptime
    name: Uptime
    unit_of_measurement: minutes
    filters:
      - lambda: return x / 60.0;


  - platform: wifi_signal
    name: Signal
    update_interval: 60s
