Shelly Pro 2 PM
Shelly Pro 2 PM
Device Type: relayBoard: esp32

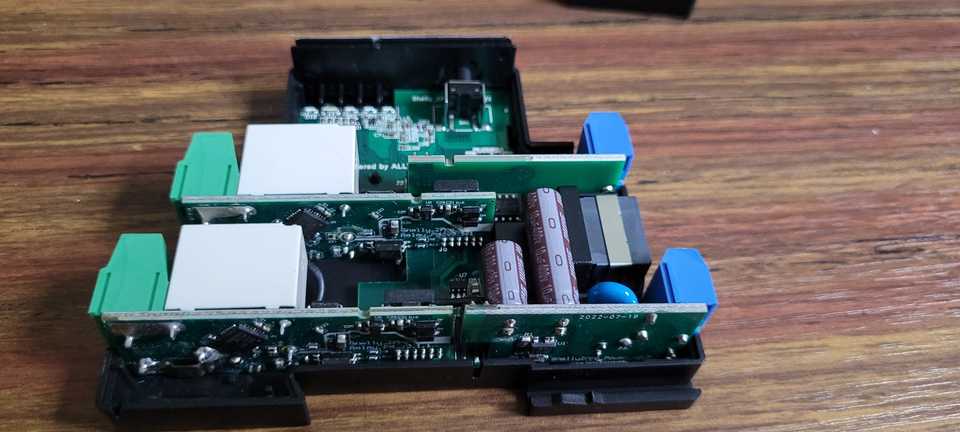

Information about the pinout and internals of the Shelly Pro 2 PM.
It's the same board as the Shelly Pro 2. The only difference is the addition of two ADE7953 chips (one on each relay board).



Pinout
| ESP32 DOWDQ6 | Component |
|---|---|
| GPIO 0 | ADE7953 #1 SPI CS |
| GPIO 2 | ADE7953 RST |
| GPIO 4 | SN74HC595B SPI CS |
| GPIO 12 | SPI MISO |
| GPIO 13 | SPI MOSI |
| GPIO 14 | SPI CLK |
| GPIO 15 | ADE7953 #2 SPI CS |
| GPIO 17 | LAN8720A CLKIN |
| GPIO 18 | LAN8720A MDIO |
| GPIO 19 | LAN8720A TXD0 |
| GPIO 21 | LAN8720A TXEN |
| GPIO 22 | LAN8720A TXD1 |
| GPIO 23 | LAN8720A MDC |
| GPIO 25 | LAN8720A RXD0 |
| GPIO 26 | LAN8720A RXD1 |
| GPIO 27 | LAN8720A CRS_DV |
| GPIO 35 | Reset Button |
| GPIO 36 | ADC Temperature 1 |
| GPIO 37 | ADC Temperature 2 |
| GPIO 38 | Switch input 1 |
| GPIO 39 | Switch input 2 |
Shift register
A shift register is controlling the WIFI RGB LEDs and the 2 relays.



| SN74HC595B | Component |
|---|---|
| QA | Relay 1 + Out 1 LED |
| QB | Relay 2 + Out 2 LED |
| QC | WIFI RGB LED (Blue) |
| QD | WIFI RGB LED (Green) |
| QE | WIFI RGB LED (Red) |
| QF | NC |
| QG | NC |
| QH | NC |
The Out 1 status LED and the relay 1 are on the same output. The same is true for the Out 2 status LED and the relay 2. Turning on the relay turns the corresponding LED on.
The WIFI LED is an RGB LED. By turning each component on or off, you have access to 8 configurations:
| R | G | B | Color |
|---|---|---|---|
| 0 | 0 | 0 | OFF |
| 0 | 0 | 1 | Blue |
| 0 | 1 | 0 | Green |
| 0 | 1 | 1 | Cyan |
| 1 | 0 | 0 | Red |
| 1 | 0 | 1 | Magenta |
| 1 | 1 | 0 | Yellow |
| 1 | 1 | 1 | White |
Programming Pinout

Note that the pin pitch is 1.27mm, so standard 2.54mm Dupont cables won't work.
ADE7953
Each of the relay sub-boards has a dedicated ADE7953 chip to provide the power monitoring feature.
While each ADE7953 provides two channels A & B, only the channel A of each measures the valuable data. Channel B is likely measuring references (0V, 0A, 0W).
Reset pin
Each ADE7953 has a reset pin, but both reset pins are connected to the same GPIO (GPIO2). The reset pin is active low, which means that if we don't do anything, reset will be asserted and maintained and the ESP32 won't be able to talk to the ADE7953s.
So we need to set GPIO2 to a high value. See the output: section in the
configuration below.
Calibration data
The active power values will both be negative, so we need to multiply them by -1 to get them both positive.
Arduino
On arduino platform, there is nothing to specify: the default values are correct.
esp-idf
On esp-idf platform, for some unknown reason the ADE7953 default value for
voltage_gain, current_gain_* and active_power_gain_* (which is
0x400000) is not taken into account, and 0x200000 ends up in the registers.
The only way I found to get around it on esp-idf platform is to use following
hack for each ADE7953 configuration:
voltage_pga_gain: 2xcurrent_pga_gain_a: 2xcurrent_pga_gain_b: 2xactive_power_gain_a: 0x200000active_power_gain_b: 0x2000000x100000 will actually end up in the active_power_gain_* registers but
together with the other values, it will be correct.
Basic Configuration
esphome:  name: shelly-pro-2-pm
esp32:  board: esp32dev  framework:    type: arduino
logger:
api:
ota:  platform: esphome
wifi:  ssid: !secret wifi_ssid  password: !secret wifi_password  ap:    ssid: "Shelly-Pro-2-PM"    password: "BzwFc7HsRihG"
# ethernet:#   type: LAN8720#   mdc_pin: GPIO23#   mdio_pin: GPIO18#   clk_mode: GPIO17_OUT
captive_portal:
spi:  clk_pin: GPIO14  mosi_pin: GPIO13  miso_pin:    number: GPIO12    ignore_strapping_warning: true
button:  - platform: shutdown    id: do_shutdown  - platform: restart    name: "Restart"    id: do_restart
binary_sensor:  - platform: gpio    id: reset_button    pin:      number: 35      inverted: true    on_release:      then:        button.press: do_restart
  - platform: gpio    id: input1    pin:      number: 38    on_press:      then:        switch.toggle: relay1
  - platform: gpio    id: input2    pin:      number: 39    on_press:      then:        switch.toggle: relay2
sensor:  - platform: adc    id: temp_voltage1    pin: GPIO36    attenuation: auto  - platform: resistance    id: temp_resistance1    sensor: temp_voltage1    configuration: DOWNSTREAM    resistor: 10kOhm  - platform: ntc    sensor: temp_resistance1    name: Temperature 1    unit_of_measurement: "°C"    accuracy_decimals: 1    icon: "mdi:thermometer"    calibration:      b_constant: 3350      reference_resistance: 10kOhm      reference_temperature: 298.15K    on_value_range:      - above: 90        then:          - switch.turn_off: relay1          - switch.turn_off: relay2          - button.press: do_shutdown
  - platform: adc    id: temp_voltage2    pin: GPIO37    attenuation: auto  - platform: resistance    id: temp_resistance2    sensor: temp_voltage2    configuration: DOWNSTREAM    resistor: 10kOhm  - platform: ntc    sensor: temp_resistance2    name: Temperature 2    unit_of_measurement: "°C"    accuracy_decimals: 1    icon: "mdi:thermometer"    calibration:      b_constant: 3350      reference_resistance: 10kOhm      reference_temperature: 298.15K    on_value_range:      - above: 90        then:          - switch.turn_off: relay1          - switch.turn_off: relay2          - button.press: do_shutdown
  - platform: ade7953_spi    id: ade7953_1    cs_pin:      number: GPIO0      ignore_strapping_warning: true    voltage:      id: voltage1      name: "Voltage 1"    current_a:      id: current1      name: "Current 1"      filters:        - lambda: |-            if (x <= 0.02) return 0;            return x;    active_power_a:      id: power1      name: "Power 1"      filters:        - multiply: -1        - lambda: |-            if (x <= 0.2) return 0;            return x;
  - platform: ade7953_spi    id: ade7953_2    cs_pin:      number: GPIO15      ignore_strapping_warning: true    voltage:      id: voltage2      name: "Voltage 2"    current_a:      id: current2      name: "Current 2"      filters:        - lambda: |-            if (x <= 0.02) return 0;            return x;    active_power_a:      id: power2      name: "Power 2"      filters:        - multiply: -1        - lambda: |-            if (x <= 0.2) return 0;            return x;
# Necessary for ADE7953s to come out of reset# The reset pin is common to both ADE7953 chipsoutput:  - platform: gpio    id: ade7953_reset    pin:      number: GPIO2      inverted: true      ignore_strapping_warning: true
sn74hc595:  - id: 'sn74hc595_hub'    type: spi    latch_pin: GPIO4    sr_count: 1
switch:  - platform: gpio    name: "Relay 1"    id: relay1    pin:      sn74hc595: sn74hc595_hub      number: 0      inverted: false
  - platform: gpio    name: "Relay 2"    id: relay2    pin:      sn74hc595: sn74hc595_hub      number: 1      inverted: false
  - platform: gpio    id: wifi_led_blue    pin:      sn74hc595: sn74hc595_hub      number: 2      inverted: true
  - platform: gpio    id: wifi_led_green    pin:      sn74hc595: sn74hc595_hub      number: 3      inverted: true
  - platform: gpio    id: wifi_led_red    pin:      sn74hc595: sn74hc595_hub      number: 4      inverted: trueConfiguration as a garage door (or shutter)
In this setup, we control a garage door motor. We plug the opening phase to
relay1, and the closing phase to the relay2.
We plug an open button to input1, and a close button to input2.
We can then control the garage door either using the physical wall switch, and/or using MQTT.
substitutions:  mqtt_server: mqtt.local  client_id: garage_door  last_will_topic: "garage_door/status"  state_topic: "garage_door/state"  command_topic: "garage_door/set"  position_state_topic: "garage_door/position/state"  position_command_topic: "garage_door/position/set"
esphome:  name: garage-door
esp32:  board: esp32dev  framework:    type: arduino
logger:  level: INFO
ota:  platform: esphome
web_server:  port: 80  local: true  ota: false
ethernet:  type: LAN8720  mdc_pin: GPIO23  mdio_pin: GPIO18  clk_mode: GPIO17_OUT
mqtt:  broker: ${mqtt_server}  port: 1883  username: !secret mqtt_username  password: !secret mqtt_password  client_id: ${client_id}  clean_session: true  discover_ip: false  discovery: false  topic_prefix: null  log_topic: null  birth_message:    topic: ${last_will_topic}    payload: online    qos: 1  will_message:    topic: ${last_will_topic}    payload: offline    qos: 1  shutdown_message:    topic: ${last_will_topic}    payload: offline    qos: 1
spi:  clk_pin: GPIO14  mosi_pin: GPIO13  miso_pin:    number: GPIO12    ignore_strapping_warning: true
binary_sensor:  - platform: gpio    id: reset_button    pin:      number: 35      inverted: true    on_release:      then:        button.press: do_restart
  - platform: gpio    id: input1    pin:      number: 38    on_press:      then:        cover.open: garage_door
  - platform: gpio    id: input2    pin:      number: 39    on_press:      then:        cover.close: garage_door
  - platform: status    id: status1    on_press:      then:        switch.turn_on: wifi_led_blue    on_release:      then:        switch.turn_off: wifi_led_blue
button:  - platform: shutdown    id: do_shutdown  - platform: restart    name: "Restart"    id: do_restart
sensor:  - platform: adc    id: temp_voltage1    pin: GPIO36    attenuation: auto  - platform: resistance    id: temp_resistance1    sensor: temp_voltage1    configuration: DOWNSTREAM    resistor: 10kOhm  - platform: ntc    sensor: temp_resistance1    name: "Temperature 1"    unit_of_measurement: "°C"    accuracy_decimals: 1    icon: "mdi:thermometer"    calibration:      b_constant: 3350      reference_resistance: 10kOhm      reference_temperature: 298.15K    on_value_range:      - above: 90        then:          - switch.turn_off: relay1          - switch.turn_off: relay2          - button.press: do_shutdown
  - platform: adc    id: temp_voltage2    pin: GPIO37    attenuation: auto  - platform: resistance    id: temp_resistance2    sensor: temp_voltage2    configuration: DOWNSTREAM    resistor: 10kOhm  - platform: ntc    sensor: temp_resistance2    name: "Temperature 2"    unit_of_measurement: "°C"    accuracy_decimals: 1    icon: "mdi:thermometer"    calibration:      b_constant: 3350      reference_resistance: 10kOhm      reference_temperature: 298.15K    on_value_range:      - above: 90        then:          - switch.turn_off: relay1          - switch.turn_off: relay2          - button.press: do_shutdown
  - platform: ade7953_spi    id: ade7953_1    cs_pin:      number: GPIO0      ignore_strapping_warning: true    voltage:      id: voltage1      name: "Open Voltage"      filters:        - throttle: 5s    current_a:      id: current1      name: "Open current"      filters:        - lambda: |-            if (x <= 0.02) return 0;            return x;    active_power_a:      id: power1      name: "Open power"      filters:        - multiply: -1        - lambda: |-            if (x <= 0.2) return 0;            return x;        - throttle: 1s    update_interval: 0.4s
  - platform: ade7953_spi    id: ade7953_2    cs_pin:      number: GPIO15      ignore_strapping_warning: true    voltage:      id: voltage2      name: "Close Voltage"      filters:        - throttle: 5s    current_a:      id: current2      name: "Close current"      filters:        - lambda: |-            if (x <= 0.02) return 0;            return x;    active_power_a:      id: power2      name: "Close power"      filters:        - multiply: -1        - lambda: |-            if (x <= 0.2) return 0;            return x;        - throttle: 1s    update_interval: 0.4s
# Necessary for ADE7953s to come out of reset# The reset pin is common to both ADE7953 chipsoutput:  - platform: gpio    id: ade7953_reset    pin:      number: GPIO2      inverted: true      ignore_strapping_warning: true
sn74hc595:  - id: 'sn74hc595_hub'    type: spi    latch_pin: GPIO4    sr_count: 1
switch:  - platform: gpio    id: relay1    name: "Open relay"    internal: true    interlock: [relay2]    interlock_wait_time: 200ms    restore_mode: RESTORE_DEFAULT_OFF    pin:      sn74hc595: sn74hc595_hub      number: 0      inverted: false
  - platform: gpio    id: relay2    name: "Close relay"    internal: true    interlock: [relay1]    interlock_wait_time: 200ms    restore_mode: RESTORE_DEFAULT_OFF    pin:      sn74hc595: sn74hc595_hub      number: 1      inverted: false
  - platform: gpio    id: wifi_led_blue    pin:      sn74hc595: sn74hc595_hub      number: 2      inverted: true
  - platform: gpio    id: wifi_led_green    pin:      sn74hc595: sn74hc595_hub      number: 3      inverted: true
  - platform: gpio    id: wifi_led_red    pin:      sn74hc595: sn74hc595_hub      number: 4      inverted: true
cover:  - platform: current_based    id: garage_door    name: "Garage Door"    open_sensor: current1    open_moving_current_threshold: 0.1    open_obstacle_current_threshold: 0.33    open_duration: 20s    open_action:      - switch.turn_on: relay1    close_sensor: current2    close_moving_current_threshold: 0.1    close_obstacle_current_threshold: 0.33    close_duration: 19s    close_action:      - switch.turn_on: relay2    stop_action:      - switch.turn_off: relay1      - switch.turn_off: relay2    obstacle_rollback: 30%    start_sensing_delay: 0.8s    max_duration: 25s    malfunction_detection: true    malfunction_action:      then:        - logger.log: "Malfunction detected. Relay welded."    state_topic: ${state_topic}    command_topic: ${command_topic}    position_state_topic: ${position_state_topic}    position_command_topic: ${position_command_topic}
