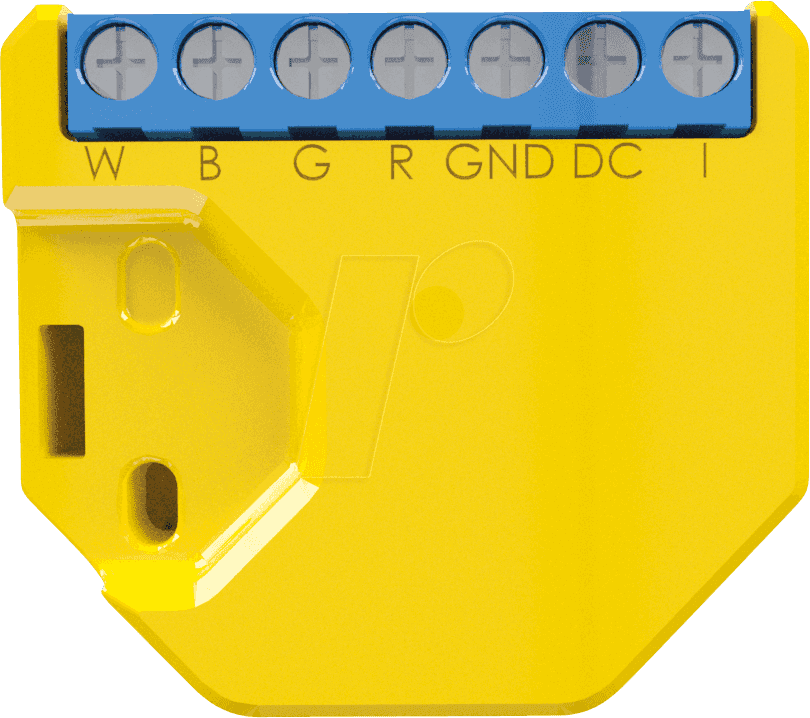

Shelly RGBW2
Shelly RGBW2
Device Type: lightBoard: esp8266
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO2 | Led Link |
| GPIO4 | PWM 4 (W) |
| GPIO5 | Switch input |
| GPIO12 | PWM 1 (R) |
| GPIO14 | PWM 3 (B) |
| GPIO15 | PWM 2 (G) |
| A0 | OpAmp Current Monitor |
Configuration for RGBW
esphome: name: shelly_rgbw2
esp8266: board: esp01_1m
wifi: ssid: !secret wifi_ssid password: !secret wifi_password
captive_portal:logger:api:ota:
light: - platform: rgbw name: ledstrip_shelly_rgbw2 red: pwm_r green: pwm_g blue: pwm_b white: pwm_w effects: - random: - strobe: - flicker:
output: - platform: esp8266_pwm pin: GPIO12 frequency: 1000 Hz id: pwm_r
- platform: esp8266_pwm pin: GPIO15 frequency: 1000 Hz id: pwm_g
- platform: esp8266_pwm pin: GPIO14 frequency: 1000 Hz id: pwm_b
- platform: esp8266_pwm pin: GPIO4 frequency: 1000 Hz id: pwm_wConfiguration for 4 monochromatic channels
substitutions: device_name: shelly_rgbw2
esphome: name: ${device_name}
esp8266: board: esp01_1m
logger:api:ota:
wifi: ssid: !secret wifi_ssid password: !secret wifi_password
light: - platform: monochromatic name: ${device_name}_ch1 id: ${device_name}_ch1 output: ${device_name}_out_ch1 - platform: monochromatic name: ${device_name}_ch2 id: ${device_name}_ch2 output: ${device_name}_out_ch2 - platform: monochromatic name: ${device_name}_ch3 id: ${device_name}_ch3 output: ${device_name}_out_ch3 - platform: monochromatic name: ${device_name}_ch4 id: ${device_name}_ch4 output: ${device_name}_out_ch4# Example output entryoutput: - platform: esp8266_pwm id: ${device_name}_out_ch1 pin: GPIO12 frequency: 1000 Hz - platform: esp8266_pwm id: ${device_name}_out_ch2 pin: GPIO15 frequency: 1000 Hz - platform: esp8266_pwm id: ${device_name}_out_ch3 pin: GPIO14 frequency: 1000 Hz - platform: esp8266_pwm id: ${device_name}_out_ch4 pin: GPIO4 frequency: 1000 Hz
binary_sensor: - platform: gpio pin: GPIO5 id: light_0_touch on_click: then: - if: condition: - light.is_off: ${device_name}_ch1 - light.is_off: ${device_name}_ch2 - light.is_off: ${device_name}_ch3 - light.is_off: ${device_name}_ch4 then: - light.turn_on: id: ${device_name}_ch1 brightness: 1.0 - light.turn_on: id: ${device_name}_ch2 brightness: 1.0 - light.turn_on: id: ${device_name}_ch3 brightness: 1.0 - light.turn_on: id: ${device_name}_ch4 brightness: 1.0 else: - light.turn_off: ${device_name}_ch1 - light.turn_off: ${device_name}_ch2 - light.turn_off: ${device_name}_ch3 - light.turn_off: ${device_name}_ch4 on_press: then: - if: condition: light.is_off: ${device_name}_ch1 then: - delay: 0.5s - while: condition: binary_sensor.is_on: light_0_touch then: - light.dim_relative: id: ${device_name}_ch1 relative_brightness: 5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch2 relative_brightness: 5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch3 relative_brightness: 5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch4 relative_brightness: 5% transition_length: 0.1s - delay: 0.1s else: - delay: 0.5s - while: condition: and: - binary_sensor.is_on: light_0_touch - light.is_on: ${device_name}_ch1 then: - light.dim_relative: id: ${device_name}_ch1 relative_brightness: -5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch2 relative_brightness: -5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch3 relative_brightness: -5% transition_length: 0.1s - delay: 0.1s - light.dim_relative: id: ${device_name}_ch4 relative_brightness: -5% transition_length: 0.1s - delay: 0.1sConfiguration for 2x CWWW (dual color Cold White Warm White) lights
This configuration disables the switch entirely and relies on software control and/or physical switch power removal.
substitutions: device_name: "shelly_rgbw2_cwww"
esphome: name: ${device_name} on_boot: then: # Enable both strips at 60% Brightness, Warm Color on startup - light.turn_on: id: light1 brightness: 60% color_temperature: 3500 K - light.turn_on: id: light2 brightness: 60% color_temperature: 3500 K
esp8266: board: esp01_1m
logger:api:
wifi: ssid: !secret wifi_ssid password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails ap: ssid: "${device_name}" password: !secret ap_pass
ota: safe_mode: True password: !secret ota_pass
captive_portal:
status_led: pin: GPIO2 light: - platform: cwww restore_mode: ALWAYS_OFF name: "${device_name}_1" cold_white: ${device_name}_out_ch2 warm_white: ${device_name}_out_ch4 cold_white_color_temperature: 6000 K warm_white_color_temperature: 3000 K constant_brightness: true id: light1
- platform: cwww restore_mode: ALWAYS_OFF name: "${device_name}_2" cold_white: ${device_name}_out_ch1 warm_white: ${device_name}_out_ch3 cold_white_color_temperature: 6000 K warm_white_color_temperature: 3000 K constant_brightness: true id: light2
# Example output entryoutput: - platform: esp8266_pwm id: ${device_name}_out_ch1 pin: GPIO12 frequency: 244 Hz - platform: esp8266_pwm id: ${device_name}_out_ch2 pin: GPIO15 frequency: 244 Hz - platform: esp8266_pwm id: ${device_name}_out_ch3 pin: GPIO14 frequency: 244 Hz - platform: esp8266_pwm id: ${device_name}_out_ch4 pin: GPIO4 frequency: 244 Hz
binary_sensor: - platform: gpio pin: GPIO5 id: light_0_touch
