Steren RGBWW Desk Lamp

Steren RGBWW Desk Lamp

Device Type: light
Electrical Standard: global
Board: bk72xx
Difficulty: Plug-n-flash, 2/5

Smart desk lamp with a sleek design, it has RGB and warm/cold white LEDs. it uses pwm to control each channel. You can flash it, you can use tuya cloud-cutter, or you can swap out the chip.

I attempted to flash the chip multiple times, but my FTDI adapter couldn’t provide enough current for a successful process. In the end, I followed Digiblur’s Tuya Cloudcutter guide, which is referenced in the ESPHome documentation for BK72xx, and that did the trick.

Device Details

Images

Promotional image from website Promotional image from website.

Open Lamp Unscrew the diffuser. The board is connected to the power source via a connector.

Pinout and Configuration

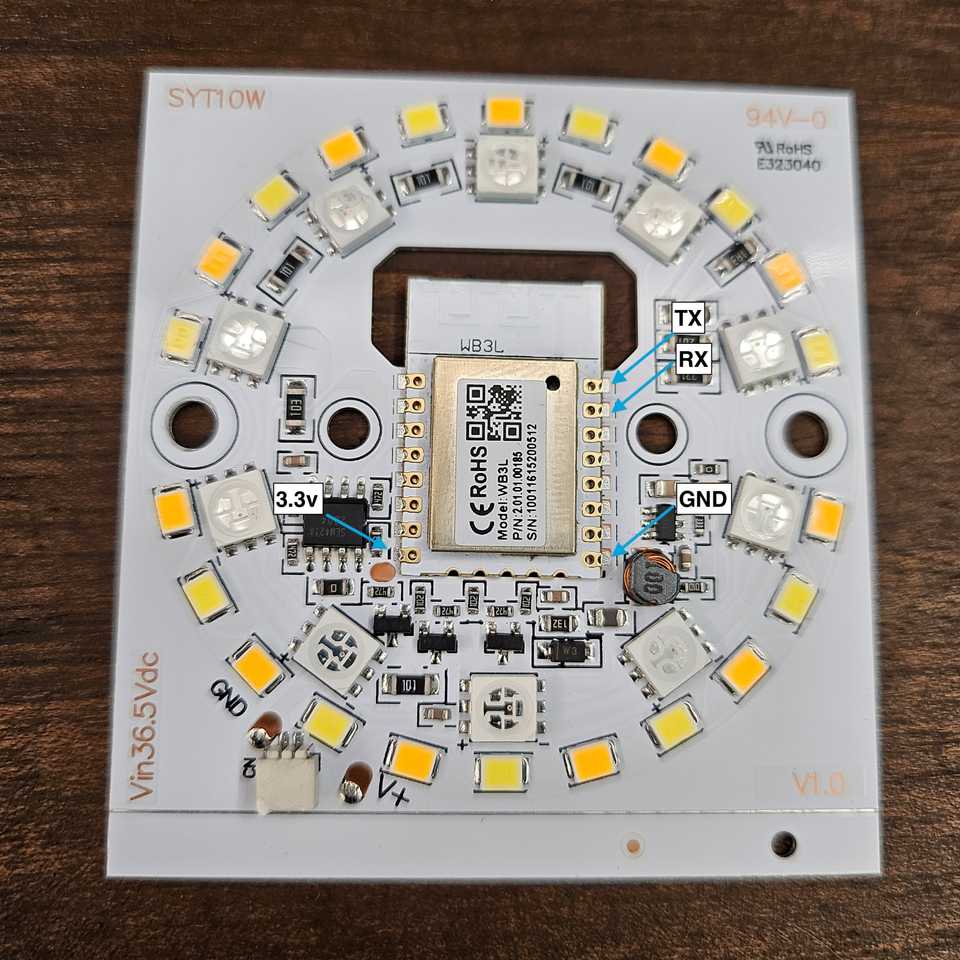

Circuit Board Internal circuit board showcasing the chipset.

GPIO Mapping

GPIOFunctionDescription
P8RedRGB LED Red Control
P26BlueRGB LED Blue Control
P24GreenRGB LED Green Control
P6Warm WhiteWhite LED Control
P7Cold WhiteWhite LED Control

Note

The lamp is enclosed in metal, which may affect Wi-Fi signal strength. Ensure it is close to the router or use a repeater if needed.

YAML Configuration

bk72xx:
  board: wb3l


output:
  - platform: libretiny_pwm
    id: red
    pin: P8
  - platform: libretiny_pwm
    id: blue
    pin: P26
  - platform: libretiny_pwm
    id: green
    pin: P24
  - platform: libretiny_pwm
    id: warm_white
    pin: P6
  - platform: libretiny_pwm
    id: cold_white
    pin: P7


light:
  - platform: rgbww
    name: "Light"
    id: rgb_light
    restore_mode: ALWAYS_OFF
    red: red
    green: green
    blue: blue
    warm_white: warm_white
    cold_white: cold_white
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2000 K
    color_interlock: True
