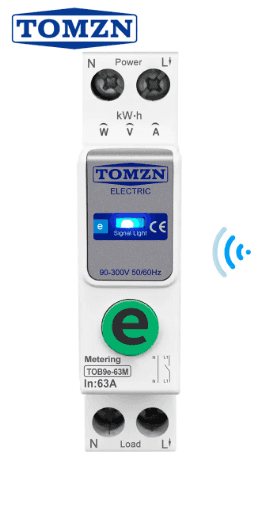

TomZN (Hiking) TOB9e-63M

Device Type: misc

Electrical Standard: global

Board: esp8266

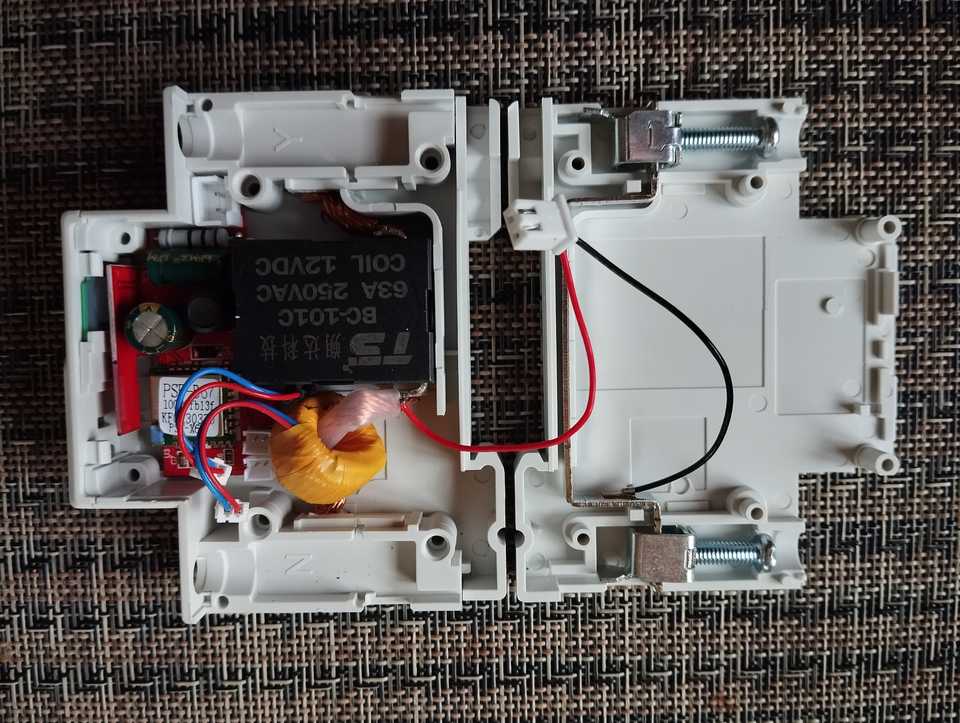

Difficulty: Disassembly required, 3/5

Notes

• On/Off switch
• Voltage/Current/Power/Energy Metering
• Working Voltage: AC100-280V
• Mechanical Life: Over 100000 Times
• Working Temperature: -25℃-70℃
• Red LED's wired to Relay and display it status
• Energy measurement starts from 0 on every power-up
• Not provide Power Apparent & Factor data

GPIO Pinout

Required for CSE7759B meter

Copy
esp8266:
  board: esp8285

logger:
  baud_rate: 0

uart:
  rx_pin: RX
  baud_rate: 4800

sensor:
  - platform: cse7766
