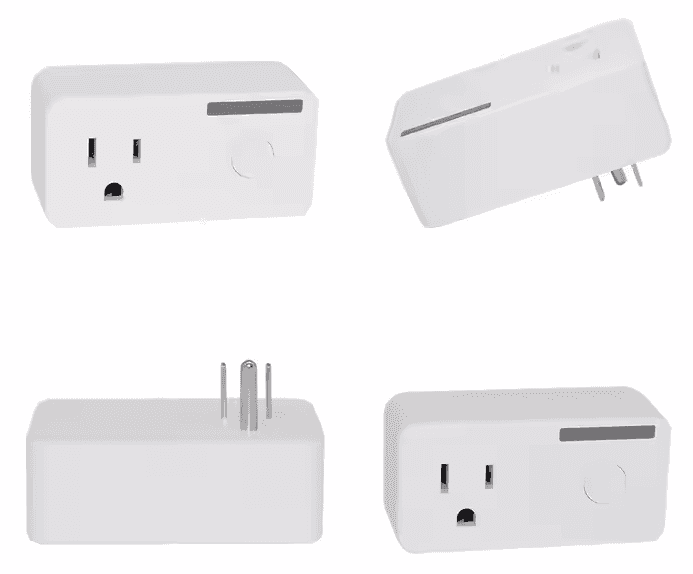

Xiangshang XS-SSA05 Smart Plug

Xiangshang XS-SSA05 Smart Plug

Device Type: plug
Electrical Standard: us
Board: esp8266
Difficulty: Disassembly required, 3/5

Amazon

Manufacturer Alibaba

FCC Pictures


Initial Install

This device requires the use of a serial connection for the first upload. Ensure that you use a serial adapter to connect to the device and upload the firmware. It cannot be converted to ESPHome using tuya-convert or tuya-cloudcutter.

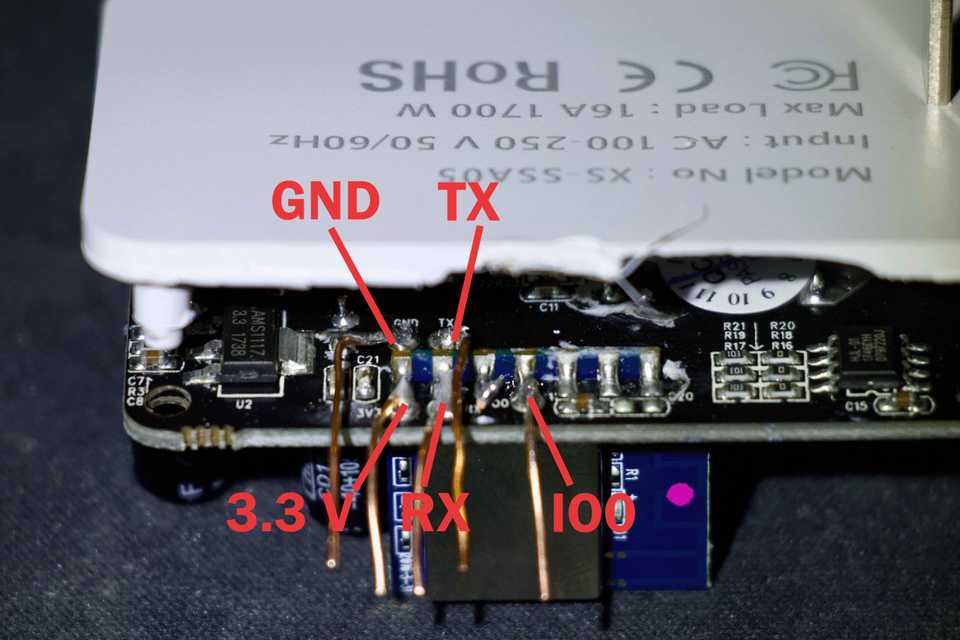

To flash the device, you must attach GND, 3.3V, RX, and TX, and bridge IO0 to ground. You may need to hold down the button while powering on the device to put it into bootloader mode.

DO NOT ATTACH MAIN AC POWER TO DEVICE WHEN FLASHING


GPIO Pinout

GPIO PinFunction
GPIO0Red Status LED (External)
GPIO1None
GPIO2None
GPIO3HLW8012 SELi
GPIO4Blue LED (Internal)
GPIO5HLW8012 CF
GPIO9None
GPIO10None
GPIO12Relay 1
GPIO13Button 1
GPIO14HLW8012 CF1
GPIO15Blue Link LED (External)
GPIO16None
GPIO17ADC Input 1

Basic Configuration

esphome:
  name: xs-ssa05
  friendly_name: XS SSA05 Smart Plug


esp8266:
  board: esp01_1m


# Enable logging
logger:


# Remove the following line if you're not using Home Assistant or your switch will restart every now and again
api:


ota:


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


binary_sensor:
  # Button (GPIO13)
  - platform: gpio
    name: "XS-SSA05 Button"
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: True
    on_press:
      - switch.toggle: relay


  # Device status
  - platform: status
    name: "XS-SSA05 Status"


sensor:
  # WiFi Signal
  - platform: wifi_signal
    name: "XS-SSA05 WiFi Signal"
    update_interval: 60s


  # HLW8012 Power Sensor
  - platform: hlw8012
    sel_pin:
      number: GPIO03
      inverted: True
    cf_pin: GPIO05
    cf1_pin: GPIO14
    current:
      name: "XS-SSA05 Current"
      accuracy_decimals: 2
    voltage:
      name: "XS-SSA05 Voltage"
      accuracy_decimals: 2
    power:
      name: "XS-SSA05 Power"
      accuracy_decimals: 2
    energy:
      name: "XS-SSA05 Energy"
      accuracy_decimals: 2
      filters:
        - multiply: 0.001 # Convert Wh to kWh


switch:
  # Relay (GPIO12)
  - platform: gpio
    name: "XS-SSA05 Relay"
    pin: GPIO12
    id: relay
    restore_mode: ALWAYS_OFF
    on_turn_on:
      - output.turn_on: relay_led
    on_turn_off:
      - output.turn_off: relay_led


time:
  - platform: sntp
    id: my_time


status_led:
  # Status LED (Blue LED on GPIO15)
  pin:
    number: GPIO15
    inverted: False


output:
  # Red LED for Relay Status (GPIO0)
  - platform: gpio
    pin:
      number: GPIO0
      inverted: True
    id: relay_led

Notes

Opening the device can be tricky. Here’s a helpful method to open it:

  • Position the plug face-up on top of the jaws of a vice or two parallel flat surfaces, ensuring only the outer shell rests on them.
  • Use a small punch to hammer through the ground hole and pop the rear cover and PCB out of the back.

Additionally, the GND and TX pins are difficult to access. A precision soldering iron is recommended to solder leads to these pins. You may need to bend and hold the back case open while soldering.
