substitutions:
  name: zb-gw03-coordinator

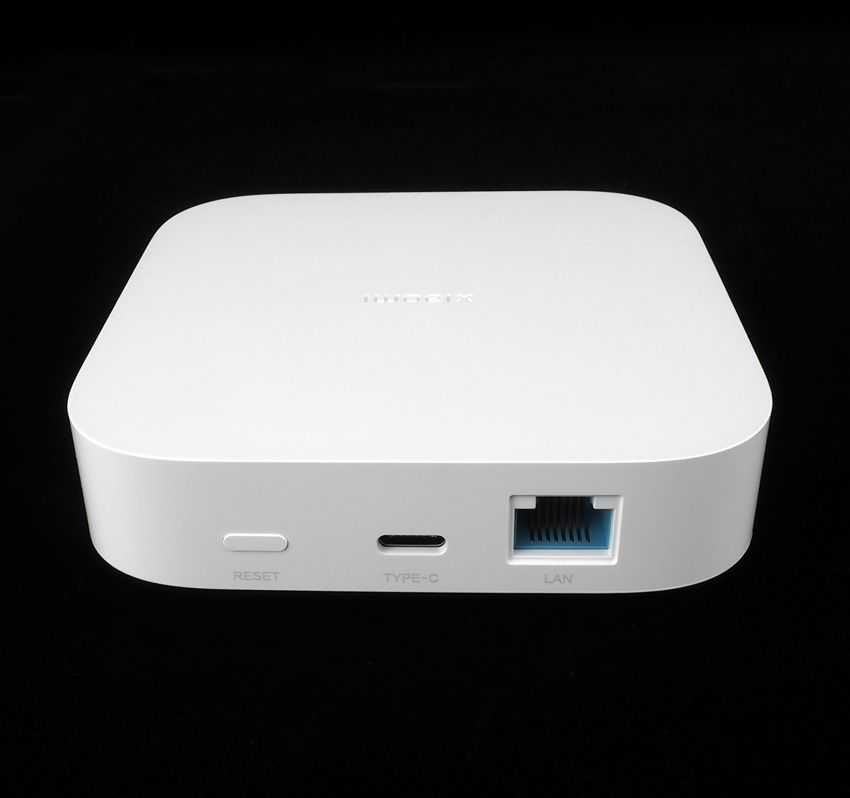

  device_description: "Ethernet Zigbee Gateway based Zigbee Coordinator"

esphome:
  name: ${name}
  comment: ${device_description}
  min_version: 2024.6.0
  on_boot:
    priority: 600
    then:
      - switch.turn_off: download_mode
      - switch.turn_on: zigbee_reset

esp32:
  board: esp-wrover-kit
  framework:
    type: esp-idf

external_components:
  - source: github://oxan/esphome-stream-server@master

api:
mqtt:
  broker: !secret mqtt_broker

ota:
  platform: esphome

logger:
  level: DEBUG

uart:
  id: uart_zigbee
  rx_pin: GPIO4
  tx_pin: GPIO2
  baud_rate: 115200

stream_server:
  uart_id: uart_zigbee
  port: 6638

switch:
  - platform: restart
    name: "${name} Restart"

  - platform: template
    id: zigbee_reset
    name: "${name} Zigbee Reset"
    turn_on_action:
      - switch.turn_on: zigbee_rst
      - delay: 10ms
      - switch.turn_off: zigbee_rst

  # SM-011 V1.0 nRST
  - platform: gpio
    id: zigbee_rst
    pin: GPIO13
    name: "${name} Zigbee nRST"
    inverted: true
    internal: true
    restore_mode: ALWAYS_OFF

  # SM-011 V1.0 PA00
  - platform: gpio
    id: download_mode
    pin: GPIO12
    name: "${name} Zigbee Download Mode"
    inverted: true
    restore_mode: ALWAYS_OFF

  - platform: template
    id: zigbee_pairing_mode
    name: "${name} Toggle pairing mode"
    turn_on_action:
      - switch.turn_on: download_mode
      - delay: 5s
      - switch.turn_off: download_mode

light:
  - platform: monochromatic
    name: "${name} green led"
    output: output0

output:
  - platform: ledc
    pin: GPIO14
    id: output0
    inverted: true

mdns:
  services:
    - service: _tube_zb_gw_efr32
      protocol: _tcp
      port: 6638
      txt:
        name: ZB-GW03
        version: 1.0
        radio_type: ezsp
        baud_rate: 115200
        data_flow_control: software

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

#ethernet:  # This cannot be enabled at the same time as wifi
#  type: LAN8720
#  mdc_pin: GPIO23
#  mdio_pin: GPIO18
#  clk_mode: GPIO17_OUT
#  phy_addr: 1
#  power_pin: GPIO16

i2c:
  - id: i2c_bus
    sda: GPIO33
    scl: GPIO32
    scan: true

binary_sensor:
  - platform: gpio
    name: "${name} Enable Pairing Mode"
    internal: true
    pin:
      number: GPIO34
      inverted: true
    on_press:
      - switch.turn_on: download_mode
      - delay: 5s
      - switch.turn_off: download_mode
